Orthopedic Oscillating Saw Trauma Surgery Medical Power Tool Trauma Surgical Electric Cutting Saw Veterinary Surgery Instruments

Product Description

Product Description

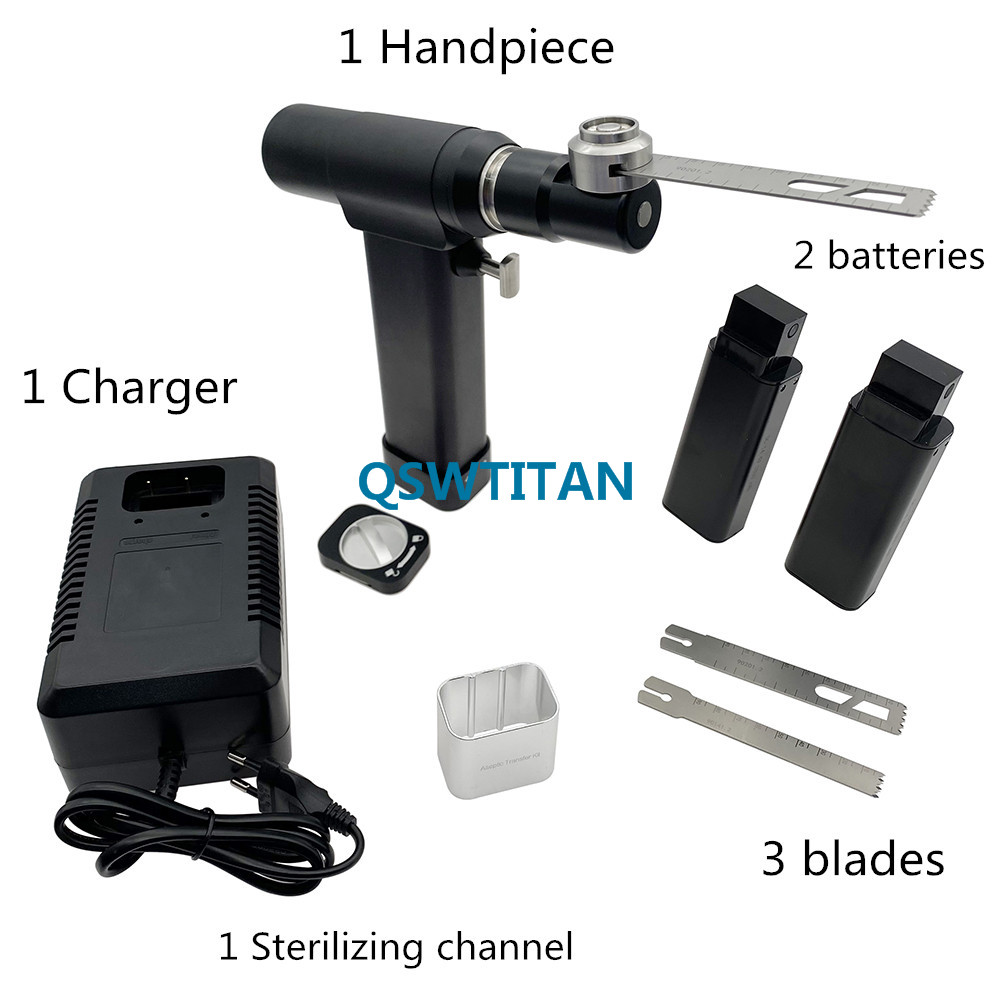

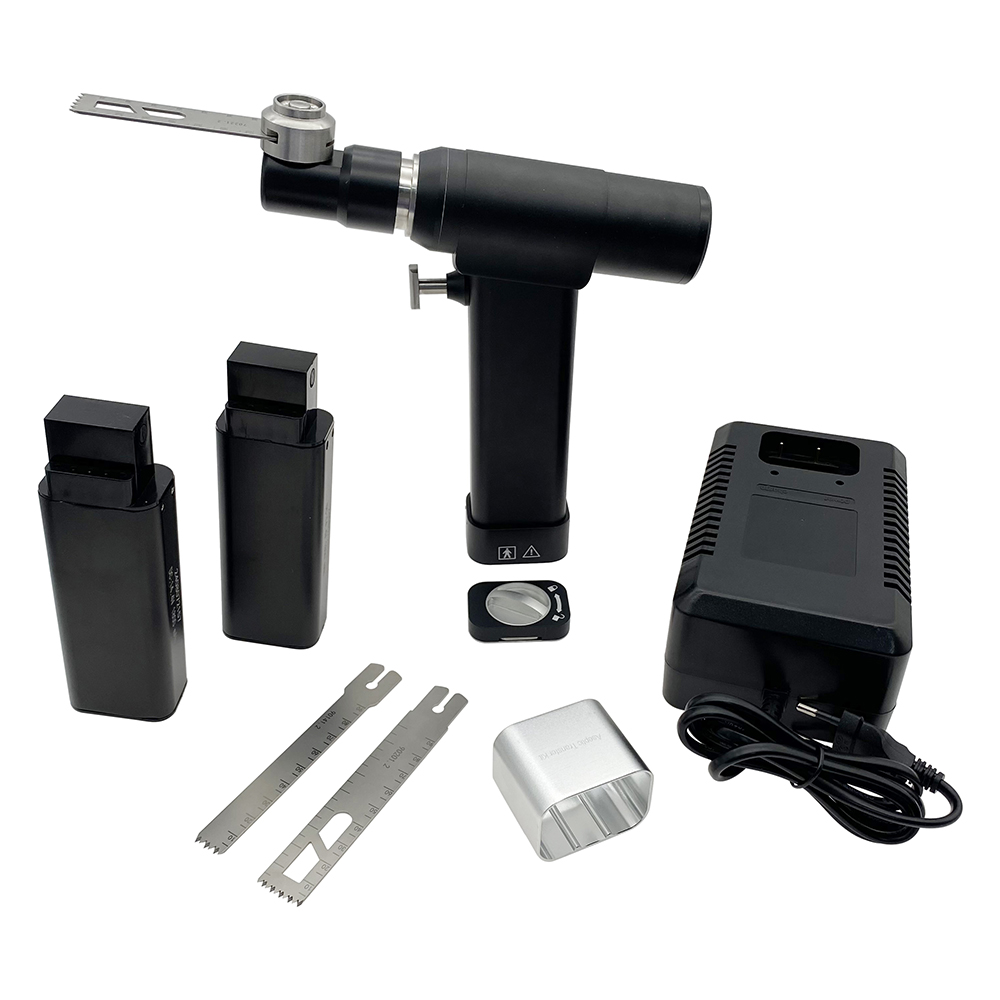

Standard Configuration

Standard Configuration

1 * Handpiece
1 * Sterilizing channel
3 * Blade
2 * Batteries
1 * Charger
Paper box / Sterilization box
Product detail 1
Product detail 2
Product detail 3
Product detail 4
Product detail 5
Product detail 6
Two choices, with aluminum box or with sterilized box, please choose before ordering, we will ship according to your choice, thank you!
With paper case

With paper case

With sterilizer box

With sterilizer box

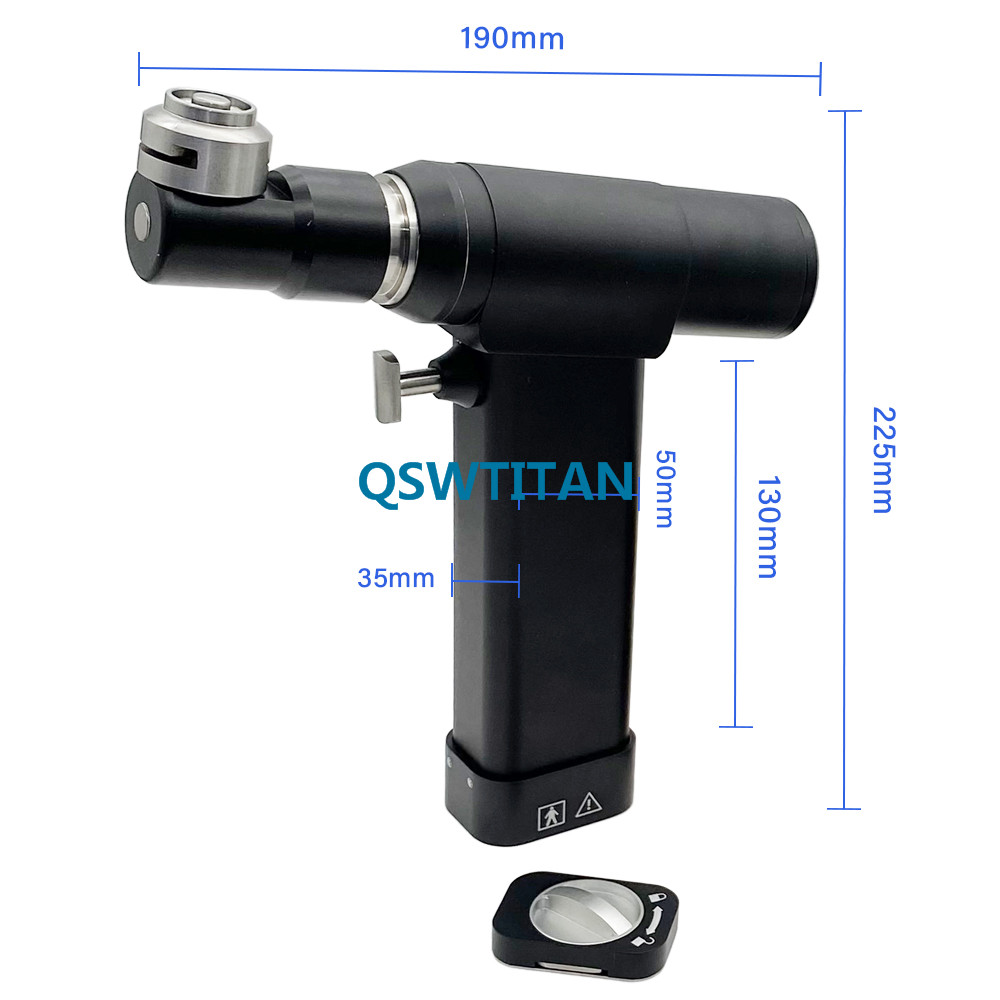

Specification

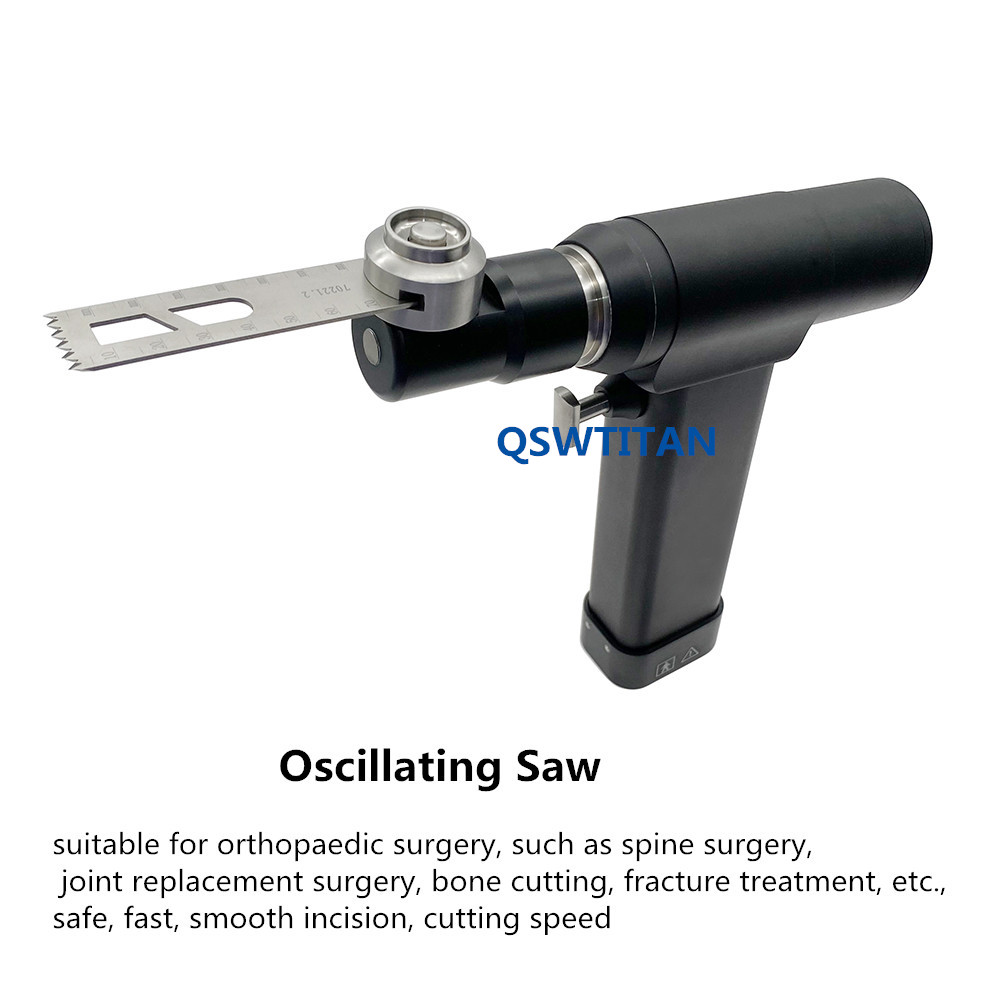

Product: Orthopedic Oscillating Saw
Main Material: Aluminum Alloy

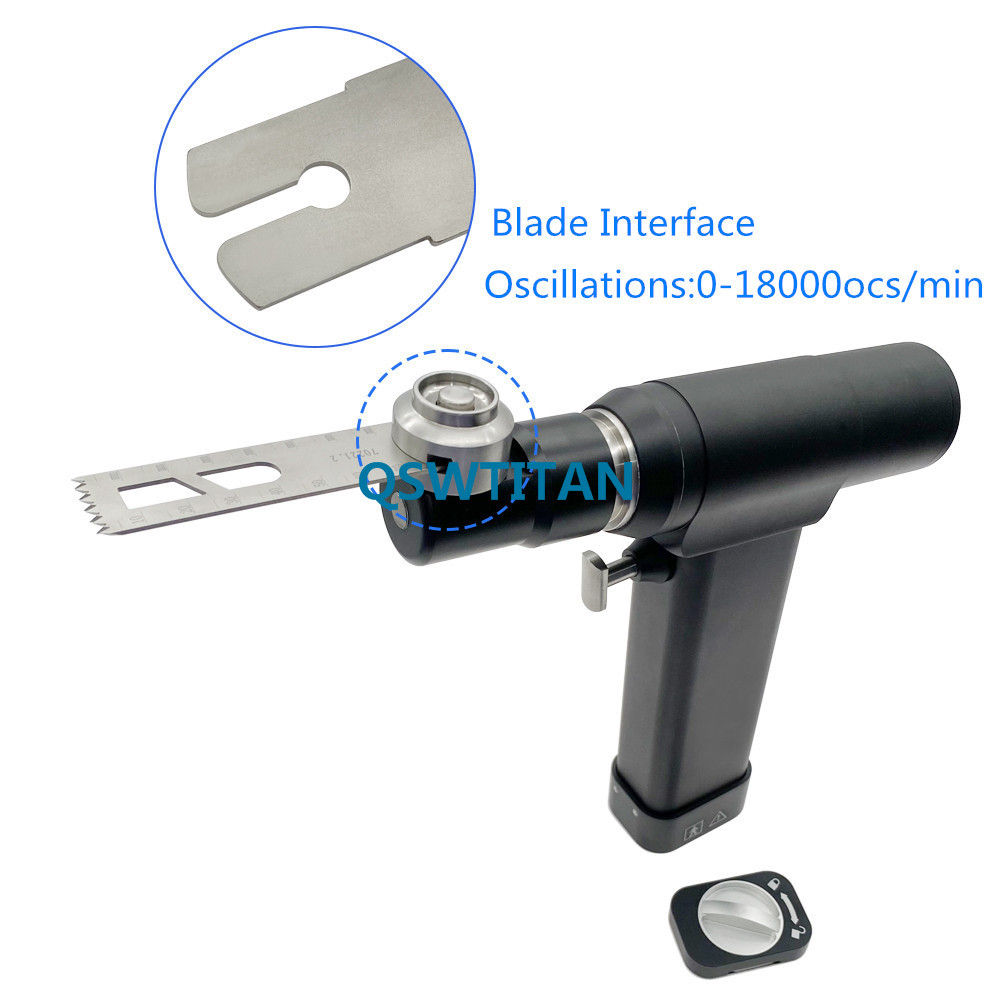

Speed: 0-18000Rpm
Operation voltage: 14.4V
charging time: 2.5-3 hours
noise: no louder than ≤75 dB
Charger Input Voltage: AC 220V, 50Hz or 110V, 60Hz
Host temperature rise: ≤ 25°C
Charger Output Power: 14.4V, 900Ma
working voltage: 14.4V 1800mAh
MOQ: 1 set
Application: Orthopedic Trauma Surgery, Joint Surgery, bone saw
Color: Black

Scenes

Clinical Scenes

Production & Quality

Production Process 1
Production Process 2
Production Process 3
Quality Standard 1
Quality Standard 2
Factory Overview
Testing Facility
Storage Area
Compliance Certification

Frequently Asked Questions

What are the primary applications of this Orthopedic Oscillating Saw?

This tool is specifically designed for Joint and Orthopedic Trauma Surgery. It provides optimal speed and high precision for bone osteotomies and general surgical bone cutting tasks.

What is the battery capacity and operating voltage of the saw?

The saw features an operating voltage of 14.4V with a high-capacity 1800mAh rechargeable battery pack, ensuring steady power output throughout surgical procedures.

How long does the battery take to charge, and is it autoclave-safe?

The typical charging time is between 2.5 and 3 hours. The handpiece is equipped with a specialized sterilizing channel, making it completely compatible with standard medical sterilization processes.

Can the cutting speed of the oscillating saw be adjusted?

Yes, the device features variable speed control ranging smoothly from 0 to 18,000 Rpm, allowing surgeons to match the precise speed needed for different bone structures.

What safety mechanisms does the tool have regarding heat and noise?

The saw is designed with maximum thermal control, keeping the host temperature rise strictly under ≤ 25°C. Additionally, the noise control keeps output levels below ≤ 75 dB to maintain a professional, calm operating room environment.

What is the packaging configuration, and is there an option?

We offer two professional packaging choices based on your needs: a standard paper case or a specialized sterilization box. Please select your preferred variant before checking out.
