Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
1 / 5
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument
Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument

Orthopedic Drilling Machines for Trauma Bone Drill Cannulated Drill for Orthopedic Surgical Instrument

Send Inquiry

Product Description

Orthopedics Cannulated Drill for Trauma Surgery
Bone drill veterinary Orthopedic Surgical Instruments
Product Description
Product Orthopedic drill/Cannulated drill
Usage Orthopedic Trauma Surgery, Joint Surgery
Color Black/Silvery (selectable)
Material Stainless Steel / Aluminum
Technical Parameters
  • ✓Output Power: 130W
  • ✓Speed: 0-800 r.p.m (Range: 0.8-8mm)
  • ✓Noise Level: ≤ 65 dB
  • ✓Sterilization: Autoclavable up to 135ºC
  • ✓Operation Voltage: 14.4V
  • ✓Hand-piece Temp. Rise: ≤ 25ºC
  • ✓Charger Input: AC 220V, 50Hz or 110V, 60Hz
  • ✓Charging Time: 2.5 - 3 Hours
Key Product Features
  • ✓Autoclavable Sterilization: Can be fully sterilized up to 135ºC to ensure maximum surgical hygiene.
  • ✓Discretionary Speed Control: Variable speed control to meet diverse surgical requirements.
  • ✓High Performance: Strong power output with low noise and minimal vibration during operation.
  • ✓Ergonomic Design: Lightweight and balanced handpiece for convenient and comfortable operation.
  • ✓High Precision: Concentric drilling with less than 0.05mm difference ensures precise and stable performance.
  • ✓Versatile Demands: A variety of drilling demands are easily met with dedicated drill bits.
Standard Configuration
1
Cannulated Drill Handpiece
1
Sterilizing Channel
1
Drill Chuck
2
Batteries
1
Charger
1
Aluminum Case

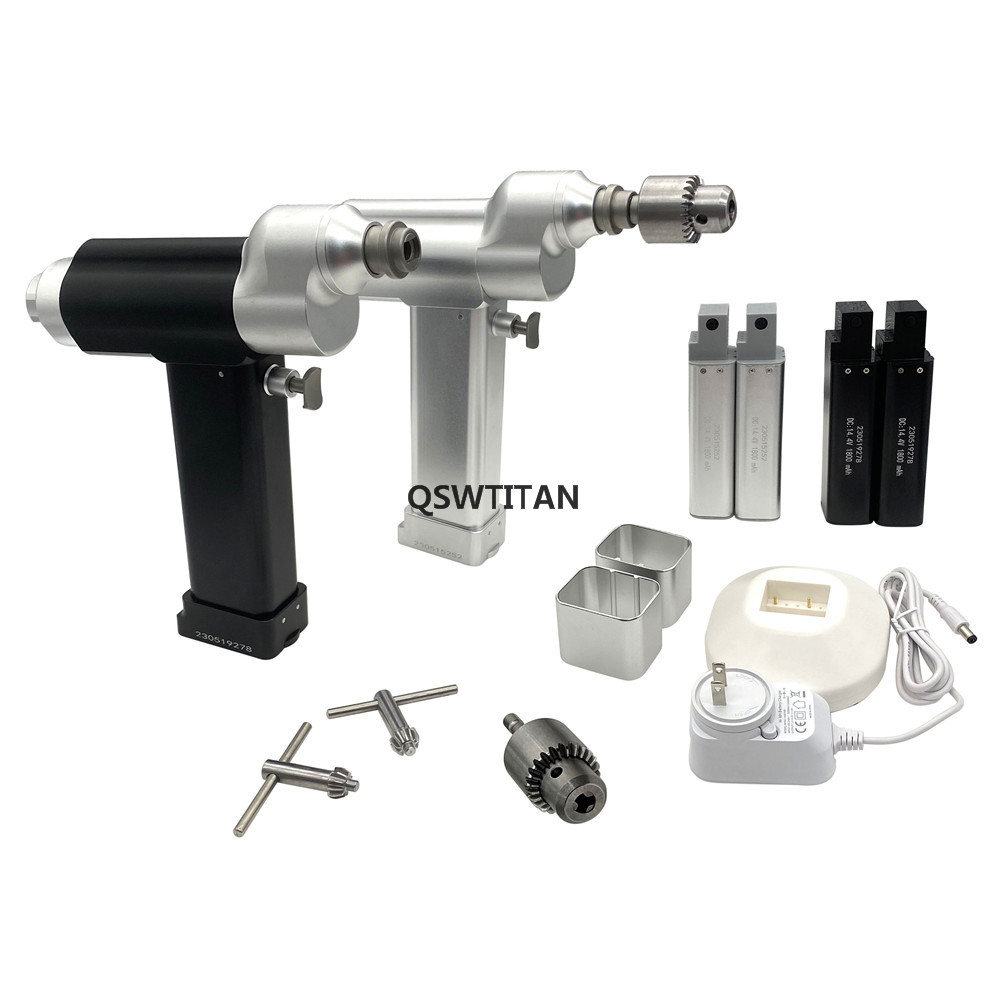

Orthopedic Drilling Machine for Trauma Bone Drill
Color Option: Silver

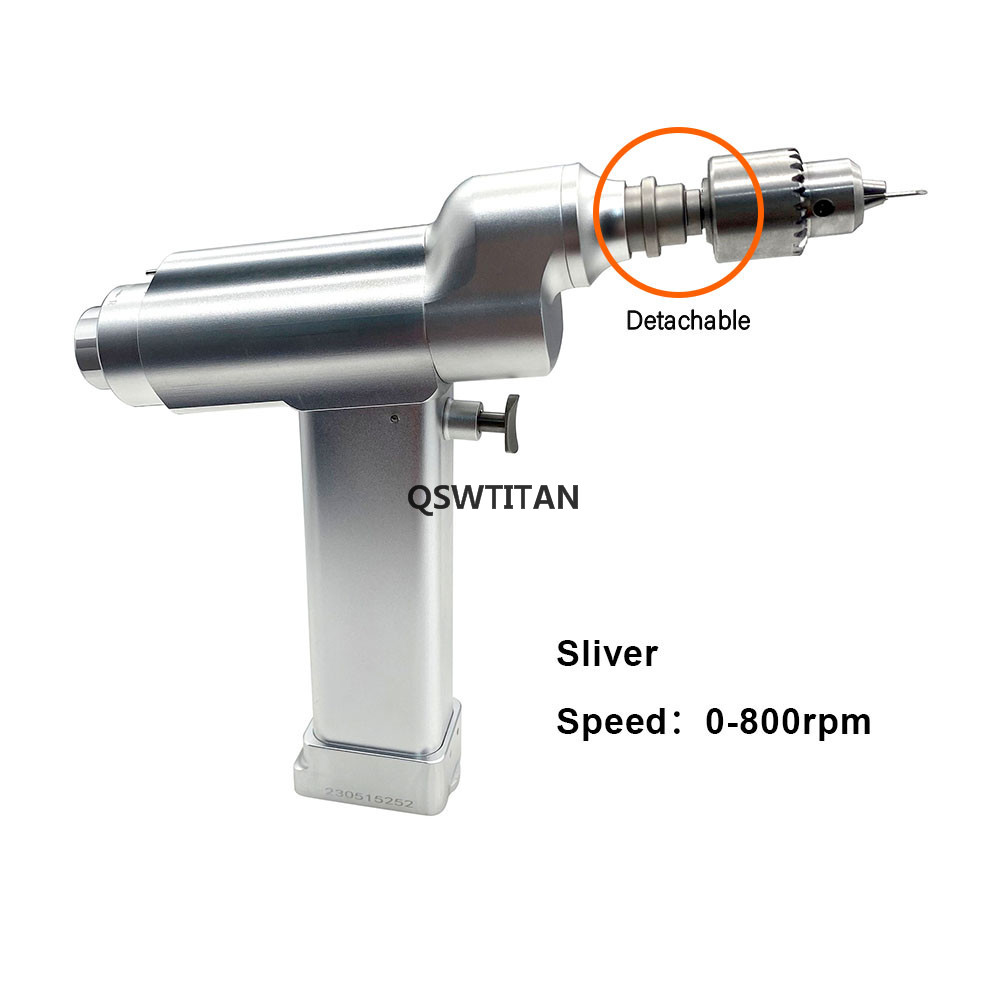

Silver Cannulated Drill Option 1
Silver Cannulated Drill Option 2

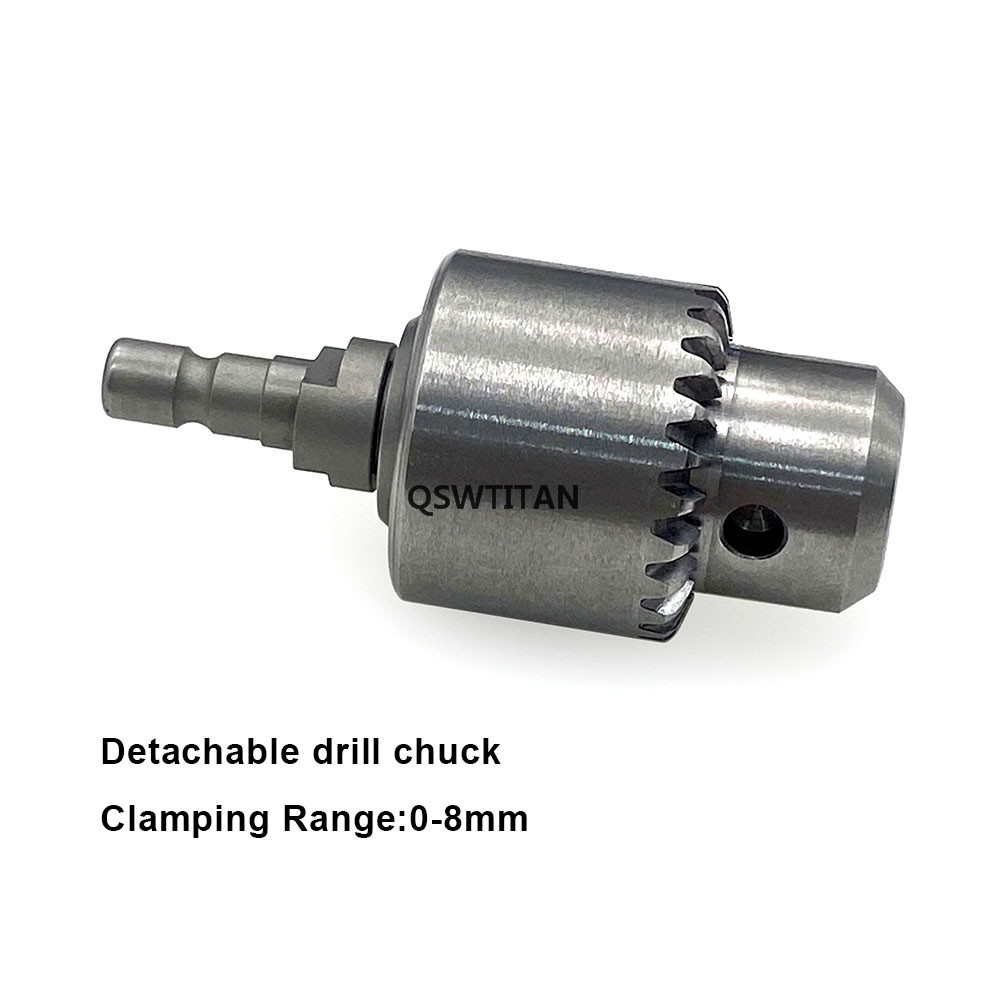

Silver Cannulated Drill Option 3

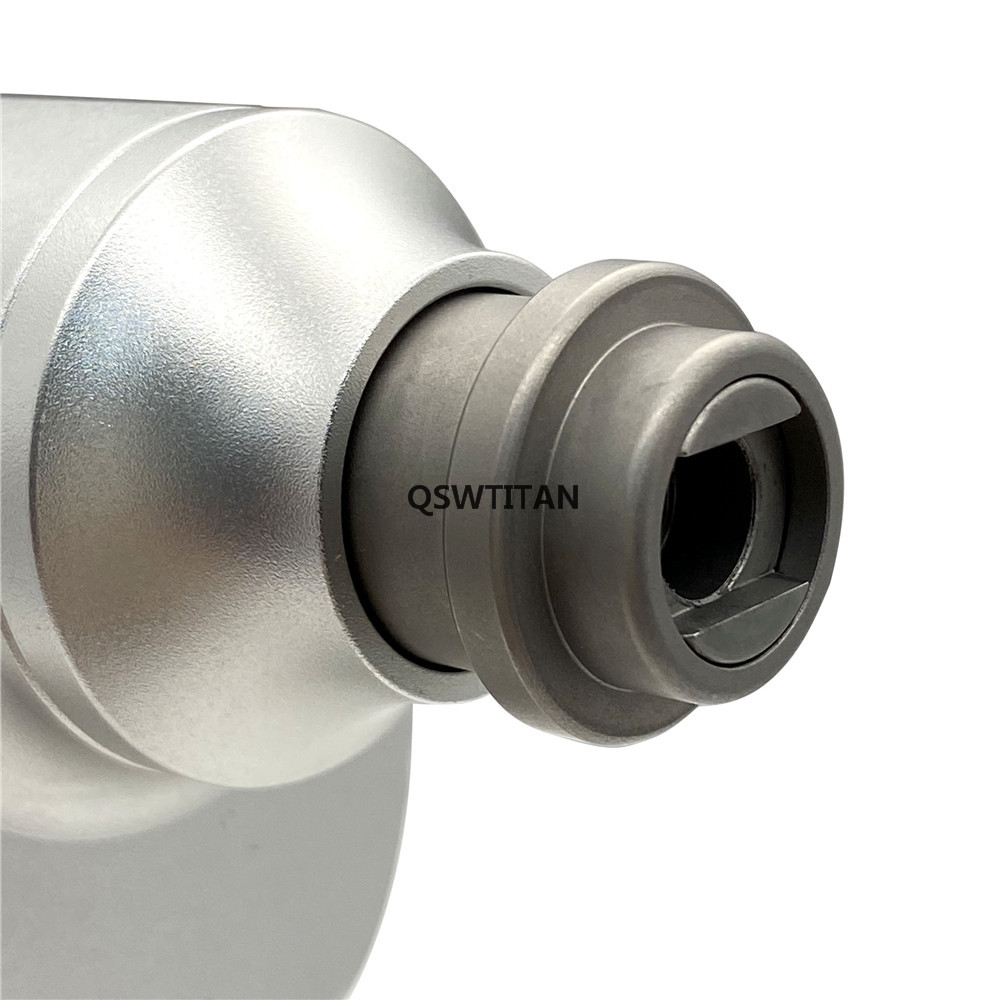

Silver Cannulated Drill Option 4
Color Option: Black

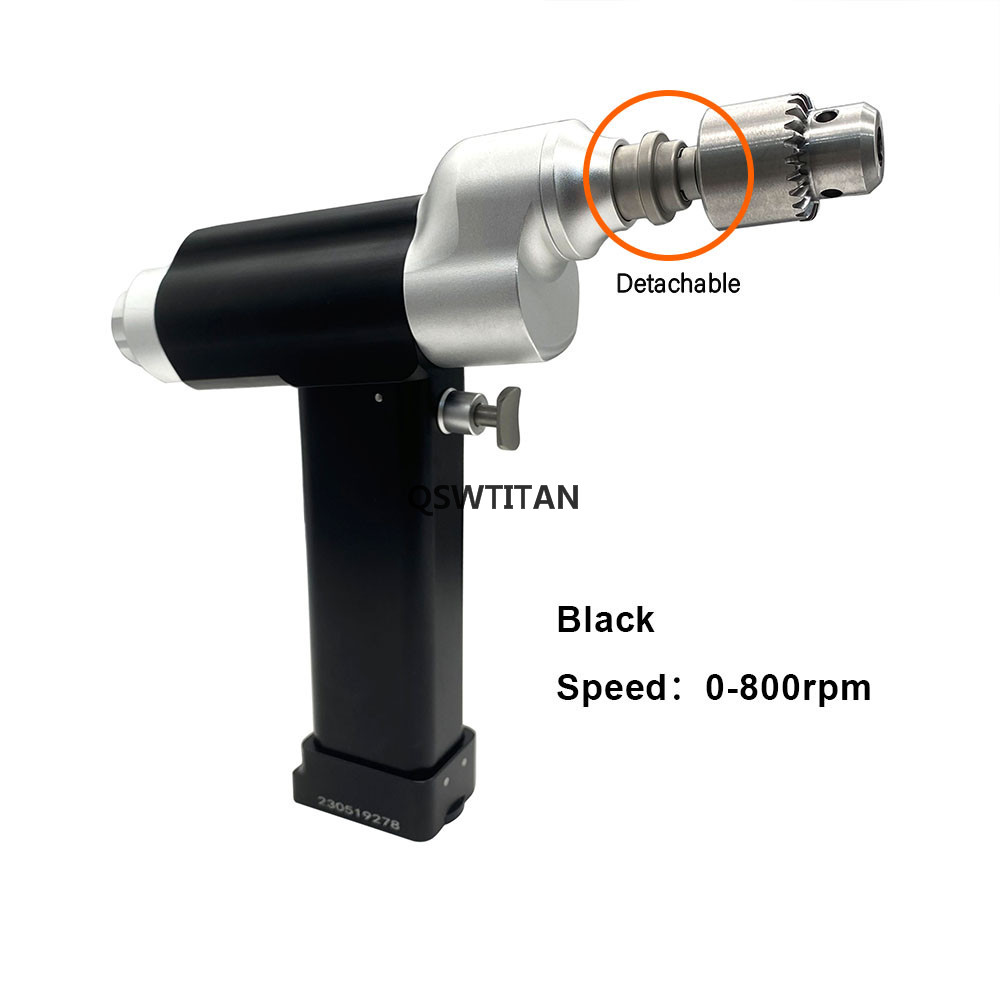

Black Cannulated Drill Option
Usage Scenarios
Usage Scenario 1
Usage Scenario 2
Usage Scenario 3
Usage Scenario 4
Packaging & Shipping

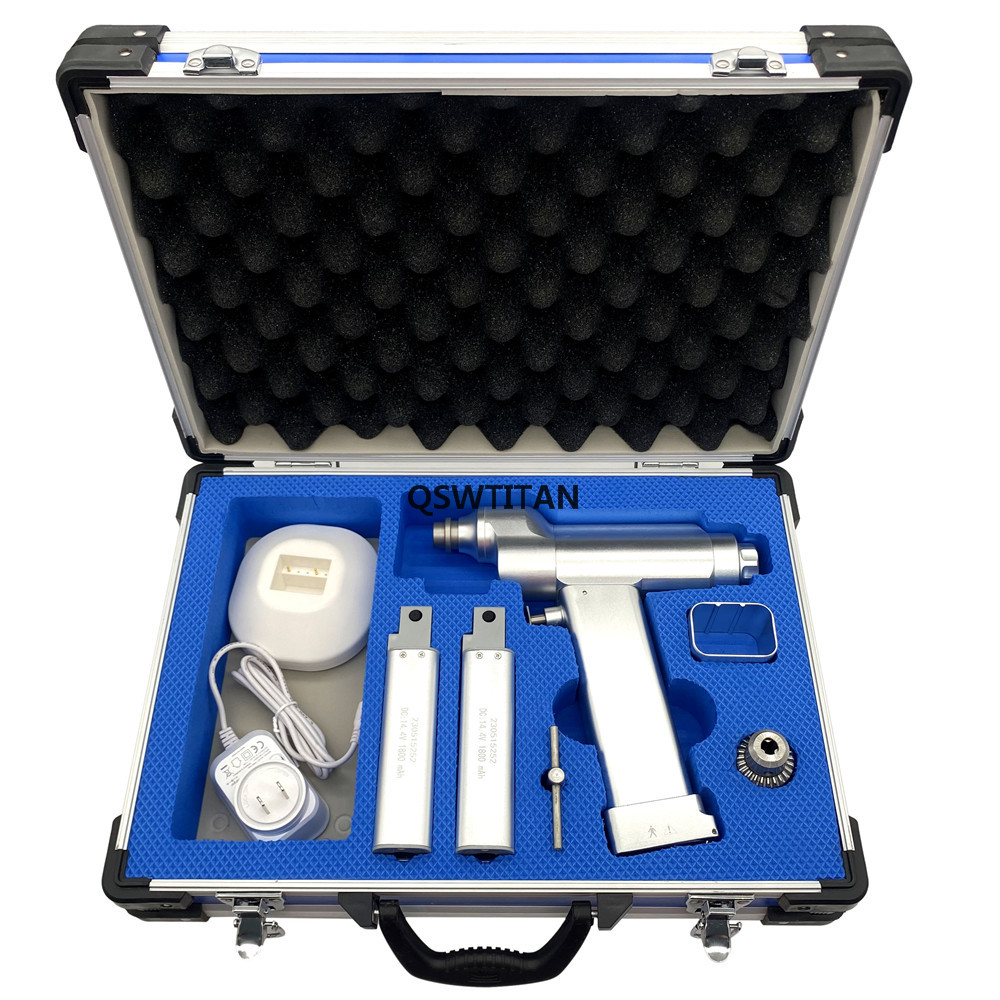

Packaging Detail 1

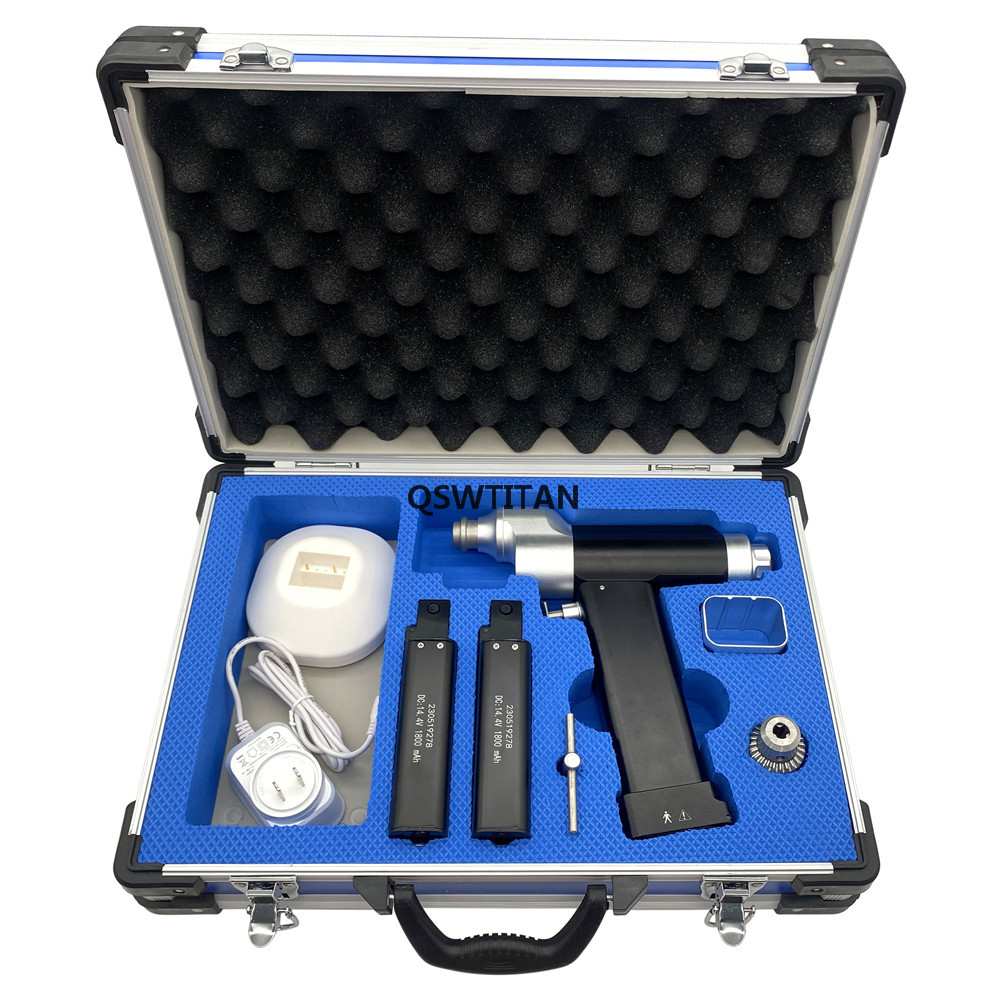

Packaging Detail 2
Packaging Detail 3
Packaging Detail 4
Packaging Detail 5
Packaging Detail 6
Packaging Detail 7
Frequently Asked Questions
What is the maximum sterilization temperature for this cannulated drill?
The orthopedic cannulated drill can be safely sterilized and autoclaved up to a maximum temperature of 135ºC.
What is the speed range and control mechanism of the drill?
It features discretionary speed control ranging from 0 to 800 r.p.m, allowing surgeons to adjust the speed dynamically according to different surgical situations.
What is included in the standard configuration package?
The standard configuration includes 1 Cannulated drill Handpiece, 1 Sterilizing channel, 1 Drill chuck, 2 Batteries, 1 Charger, and 1 protective Aluminum case.
Can this surgical instrument be used for veterinary procedures?
Yes, this instrument is highly versatile and designed for both human trauma surgery and veterinary orthopedic surgeries.
What are the electrical and battery specifications?
The drill operates on a 14.4V system. The charger supports input voltages of AC 220V (50Hz) or 110V (60Hz), and a full charge takes approximately 2.5 to 3 hours.
How does the drill ensure high precision during surgery?
The drill features concentric drilling with a difference of less than 0.05mm, which guarantees highly precise, stable, and reliable surgical performance.
