Product Description

Product Description

Orthopedic surgical oscillating saw mini medical reciprocating saw Veterinary pet surgery saw
Product Orthopedic mini Oscillating Saw
Usage Used for bone surgery, reaming, cutting, grinding etc.
Color Silvery
Material Stainless steel / Aluminum
Features & Technical Parameters
Output Power: 130W
Speed: 0-18000cpm
Noise: 65 dB
Sterilization: 135ºC
Operation voltage: 14.4V
Hand-piece Unit Rise in Temp: 25ºC
Main Material: Aluminum Alloy
Charger Input: AC 220V, 50Hz / 110V, 60Hz
Charger Output: 14.4V, 900mA
Charging Time: 2.5-3 Hours
Diameter Run-out: 0.5mm
Key Features:
  • Can be sterilized up to 135ºC
  • Discretionary speed control to meet different surgery situations.
  • Strong power, low noise, small vibration
  • Convenient operation with ergonomic design
  • Concentric drilling less than 0.05mm difference ensures precise and stable performance.

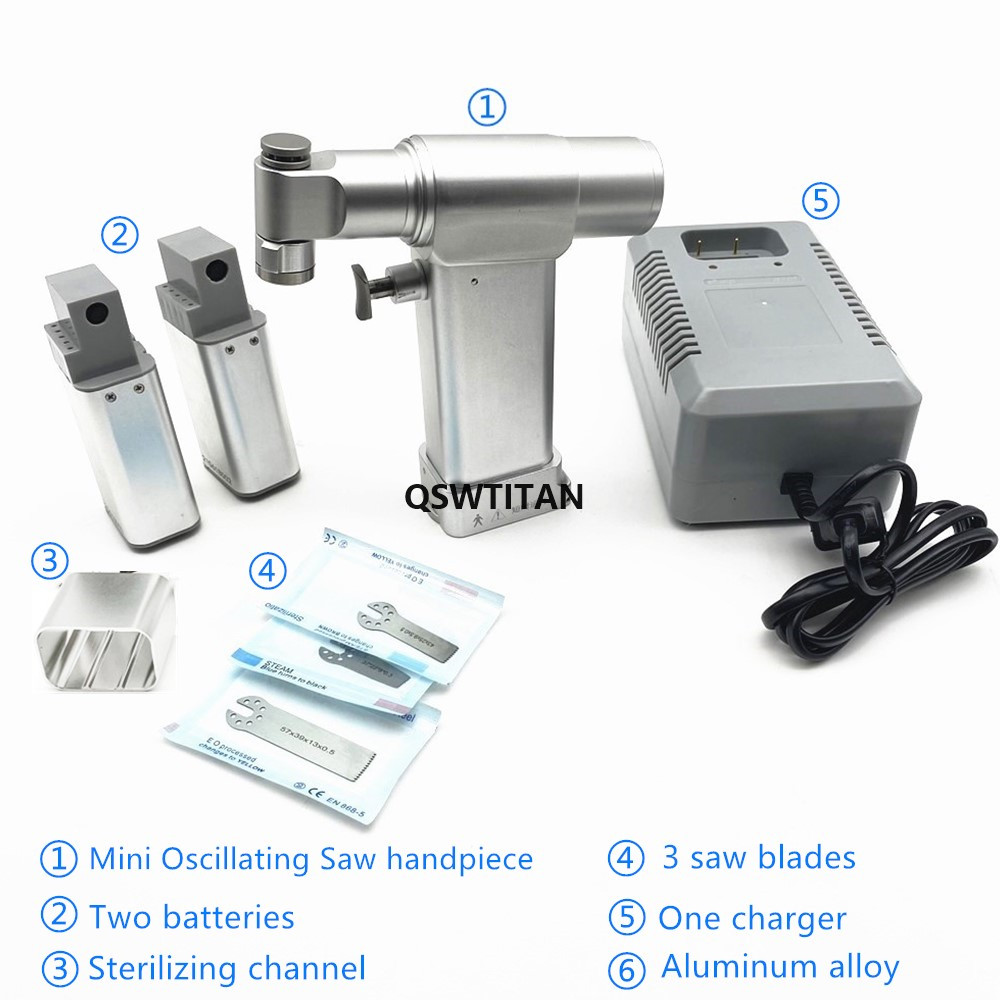

Standard Configuration
Standard Package Includes:
  • 1 Handpiece
  • 1 Sterilizing channel
  • 2 Batteries
  • 1 Charger
  • 3 Blades

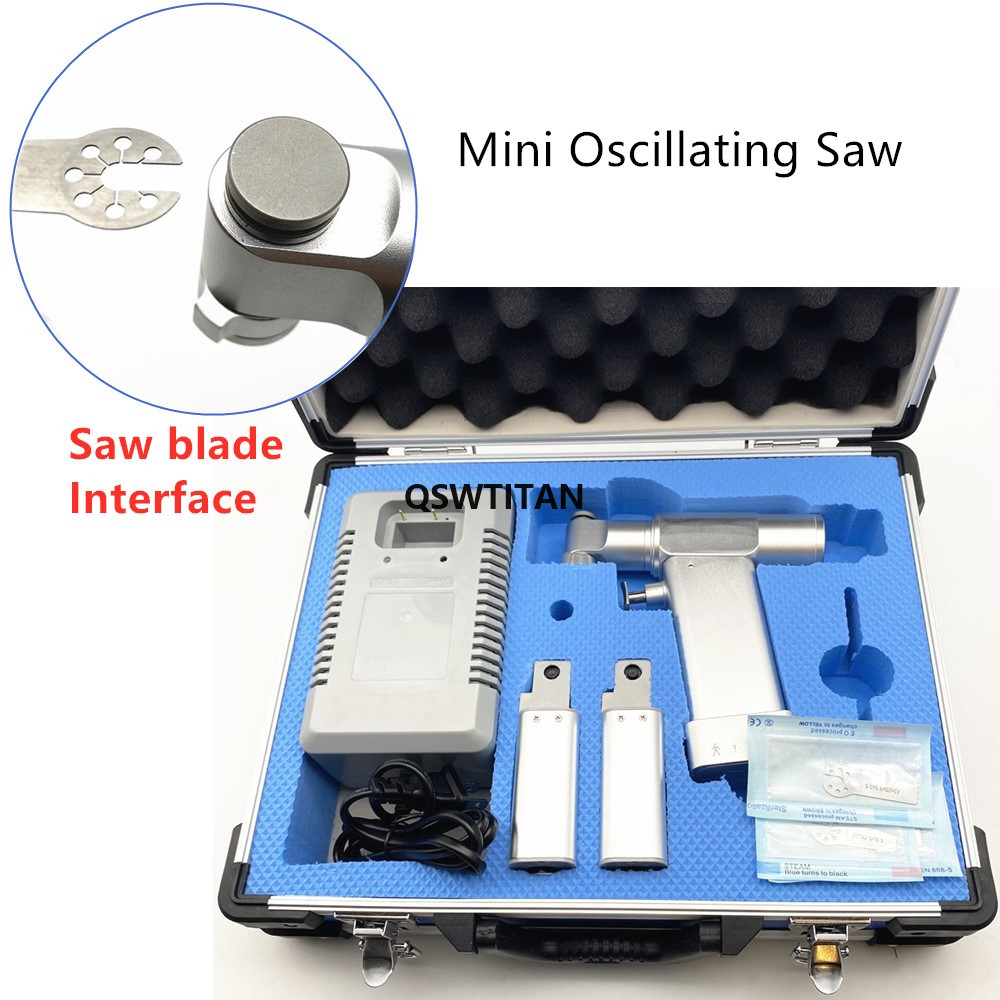

  • 1 Aluminum case
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw

Usage Scenarios

Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw

Packaging & Shipping

Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw
Micro Orthopedic Surgical Oscillating Saw Small Bone Electric Saw Mini Band Saw Autoclaving Veterinary Pet Surgery Saw

Frequently Asked Questions

What is the primary usage of this orthopedic mini oscillating saw?
It is specifically designed for veterinary and pet surgeries, primarily used for bone surgery, reaming, cutting, grinding, and other precise orthopedic procedures.
Can this medical reciprocating saw be sterilized?
Yes, the handpiece and sterilizing channel are fully autoclavable and can be sterilized at temperatures up to 135ºC to ensure complete hygiene during surgical procedures.
What are the key technical specifications of this device?
The saw features a 130W output power, discretionary speed control from 0 to 18,000 cpm, low noise operation under 65 dB, and operates on a 14.4V system voltage with minimal handpiece temperature rise (25ºC).
What is included in the standard configuration package?
The standard package includes 1 Handpiece, 1 Sterilizing channel, 2 Batteries, 1 Charger, 3 Blades, and a protective Aluminum carrying case.
How long does it take to charge the battery, and what is the charger voltage?
The battery takes approximately 2.5 to 3 hours to fully charge. The charger supports input voltages of AC 220V (50Hz) or 110V (60Hz), outputting 14.4V at 900mA.
What materials are used to construct the saw?
The main handpiece unit is constructed from premium Aluminum Alloy, while the critical surgical components and blades are made of high-quality stainless steel and aluminum to ensure durability and high precision.
