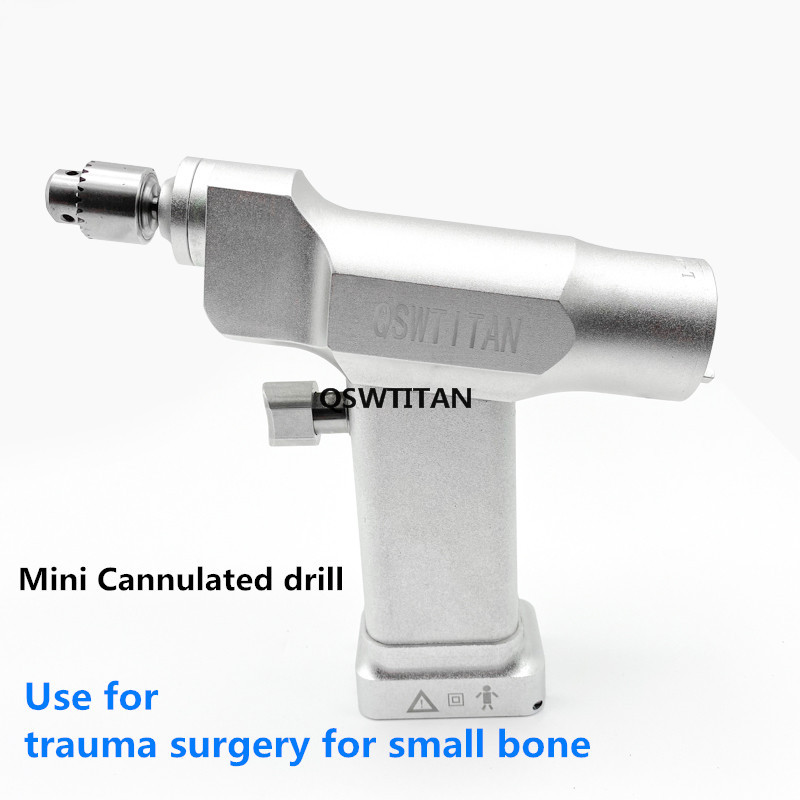

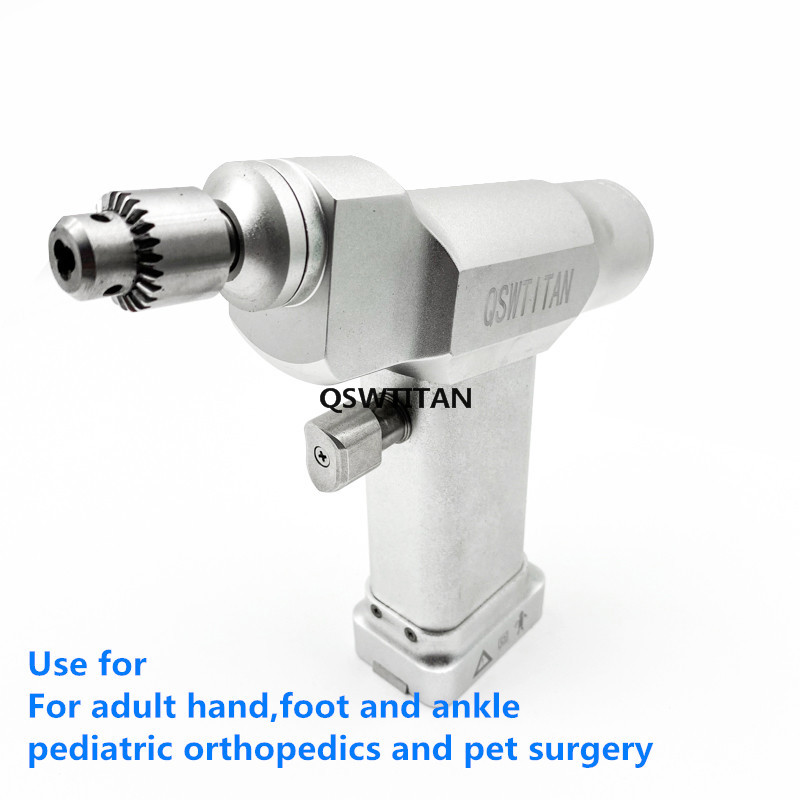

Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
1 / 5
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill

Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill

Send Inquiry

Product Description

Technical Specifications
Product Micro mini Cannulated drill
Main Material Aluminum Alloy
MOQ 1 set
Application Hand, Wrist and Feet surgeries
Type Orthopedic micro surgery drill, Awl, or Cannulated drill
Max. Drilling Diameter 1.8mm
No-Load Speed 0-1100 r.p.m
Drill type Autoclavable
Diameter of drill chuck 0.6-6mm
No load noise ≤ 65dB (a)
Radial runout ≤ 0.1mm
Rated torque 1.8n. M
Impact torque 3N. M

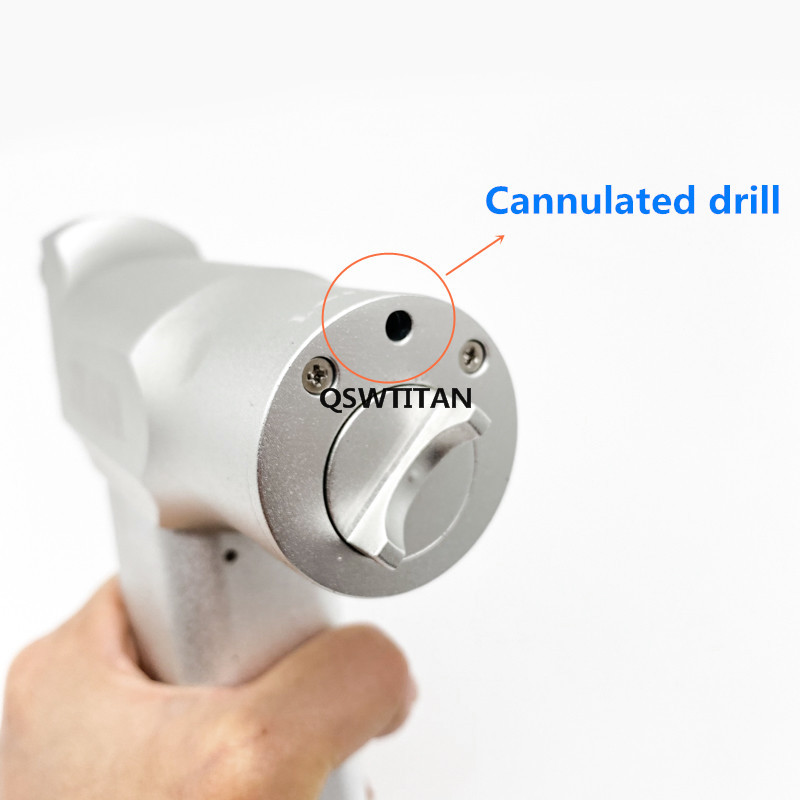

Hollow diameter ≤ 2.5mm
Properties Orthopedic Surgical Instruments
Product Display
Micro drill detail 1
Micro drill detail 2
Micro drill detail 3
Micro drill detail 4
Micro drill detail 5
Micro drill detail 6
Micro drill detail 7
Micro drill detail 8
Micro drill detail 9

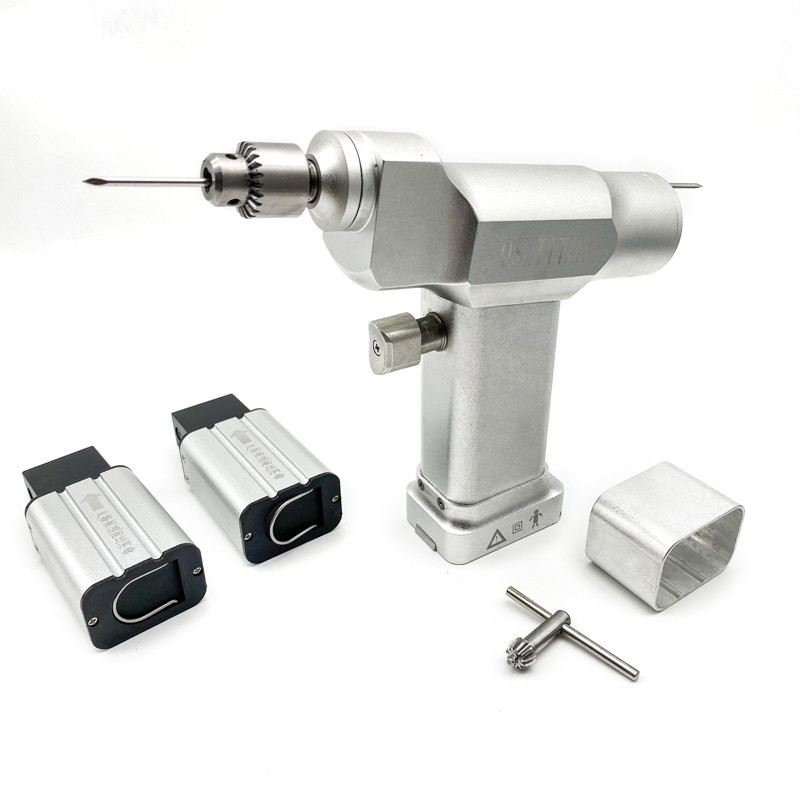

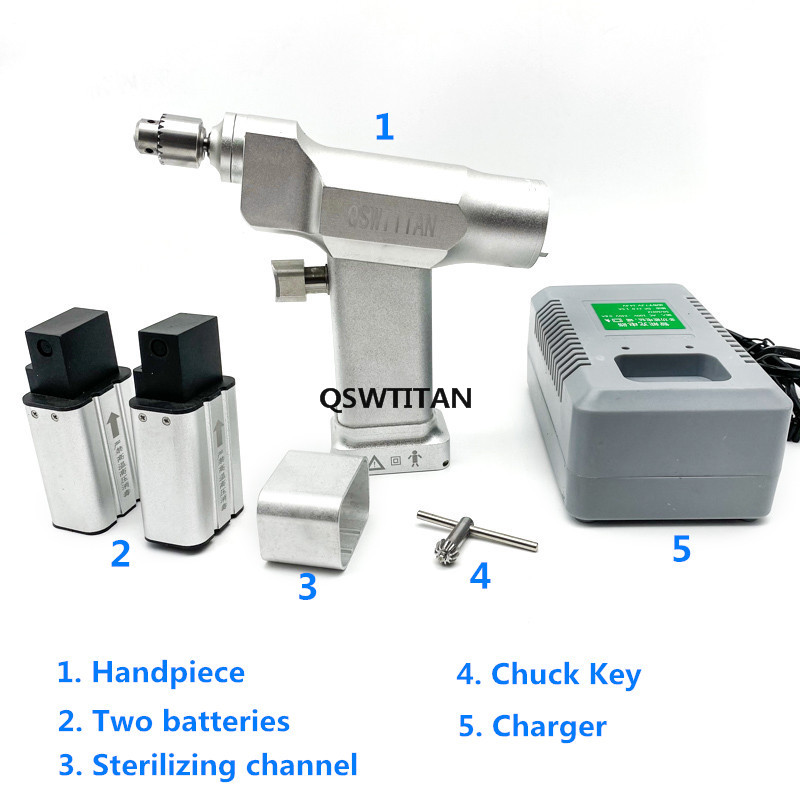

Standard Configuration
Standard Configuration Set
  • One handpiece
  • One charger
  • Two batteries
  • One sterilizing channel
  • One drill chuck
  • One aluminum alloy box
Application Scenes
Surgical Scene
Production & Quality
Factory view 1
Factory view 2
Certification 1
Certification 2
Certification 3
Production Process
Testing Area
Packaging
Components
Frequently Asked Questions
What are the primary clinical applications for this micro drill?
This micro mini cannulated drill is specifically designed for small bone surgeries, particularly for hand, wrist, and feet orthopedic procedures.
Is the entire drill unit autoclavable?
The handpiece is designed to be autoclavable. However, it is important to remove the battery before the sterilization process. A sterilizing channel is included in the standard configuration.
What is the maximum drilling diameter and torque?
The maximum drilling diameter is 1.8mm, with a rated torque of 1.8n.M and an impact torque of 3N.M, providing precision and power for micro-surgeries.
How long does the battery last and what is the charging setup?
The standard set includes two high-quality batteries and one dedicated charger, ensuring that one battery can be in use while the other is charging to prevent surgical delays.
What is the noise level during operation?
The drill operates with a low noise level of ≤ 65dB (a), which helps maintain a focused and quiet environment in the operating room.
What is the radial runout of the drill?
The radial runout is precision-engineered to be ≤ 0.1mm, ensuring extremely high accuracy during delicate surgical maneuvers.
