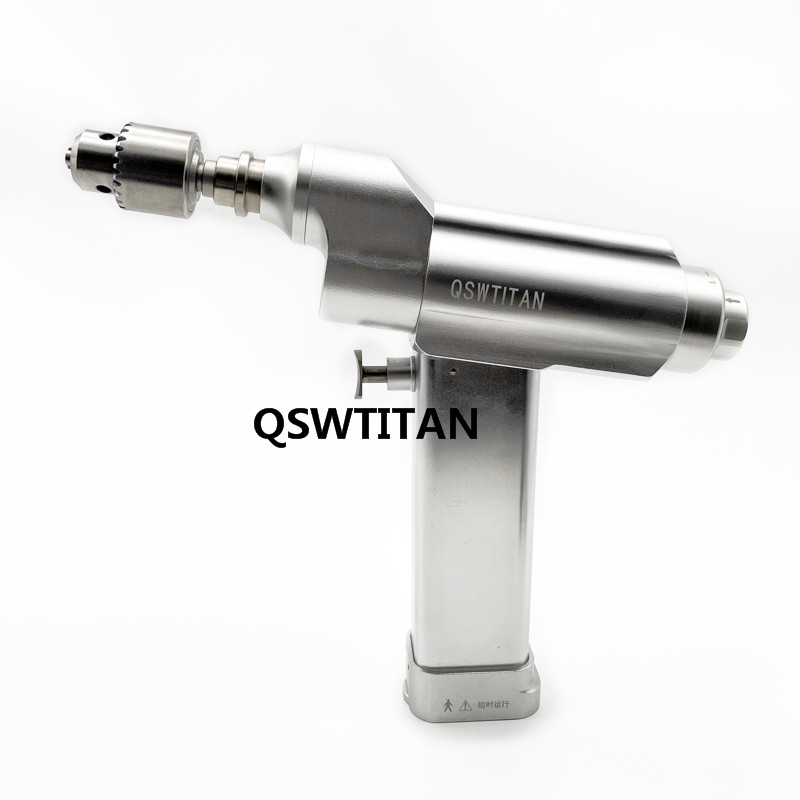

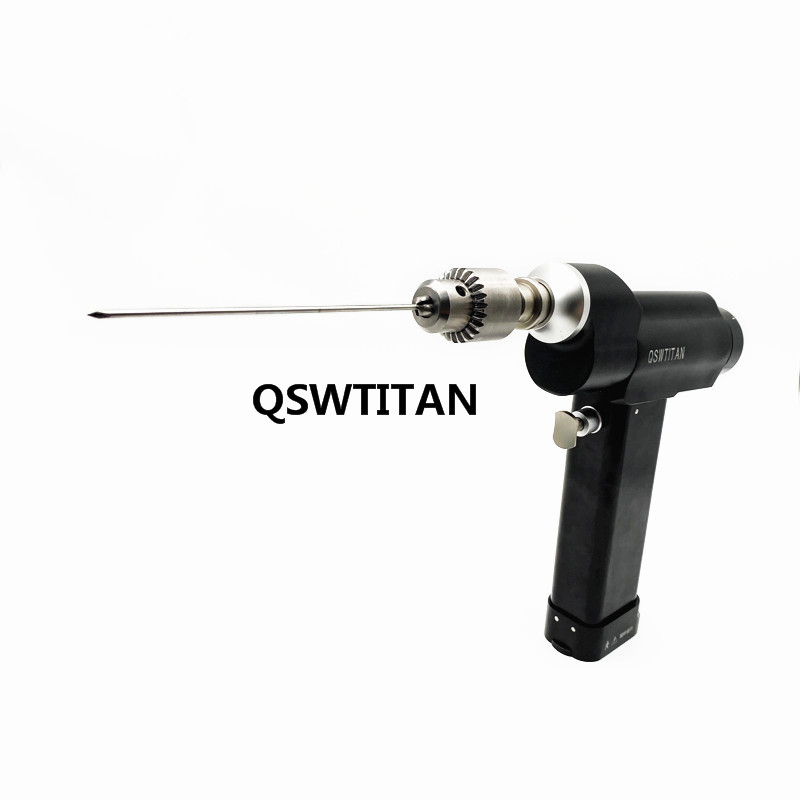

Medical Electric Drill Cannulated Drill Orthopedic Bone Power Drill for Trauma Joint Surgeries

Product Description

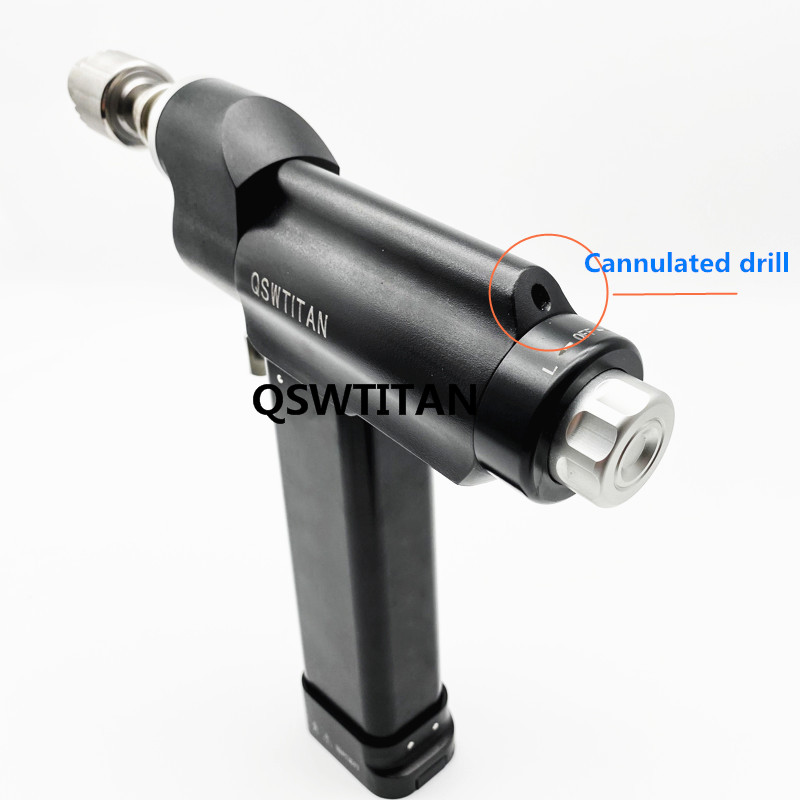

Orthopedics Cannulated Drill for Trauma Surgery
High-Performance Bone Drill & Veterinary Orthopedic Surgical Instruments
Product Specifications
Product Orthopedic drill/Cannulated drill
Usage Orthopedic Trauma Surgery, Joint Surgery

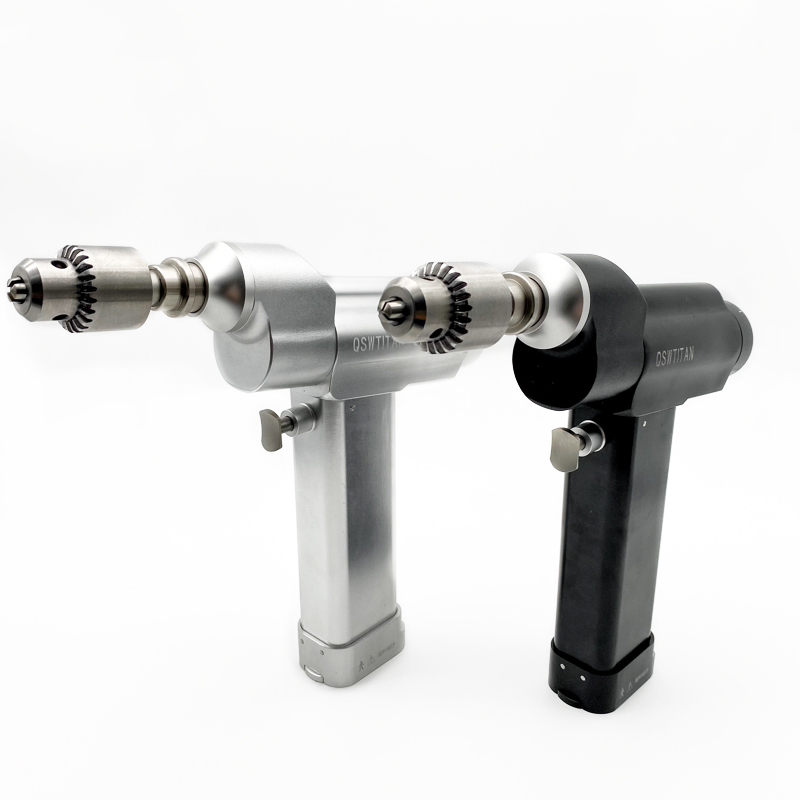

Color Black / Silvery (Optional)
Material Stainless Steel / Aluminum

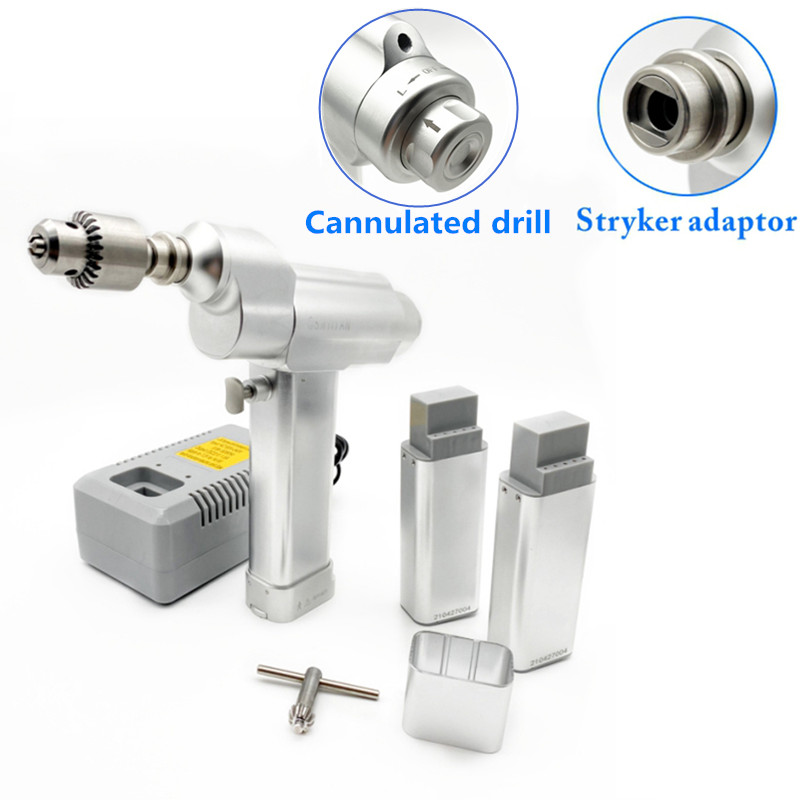

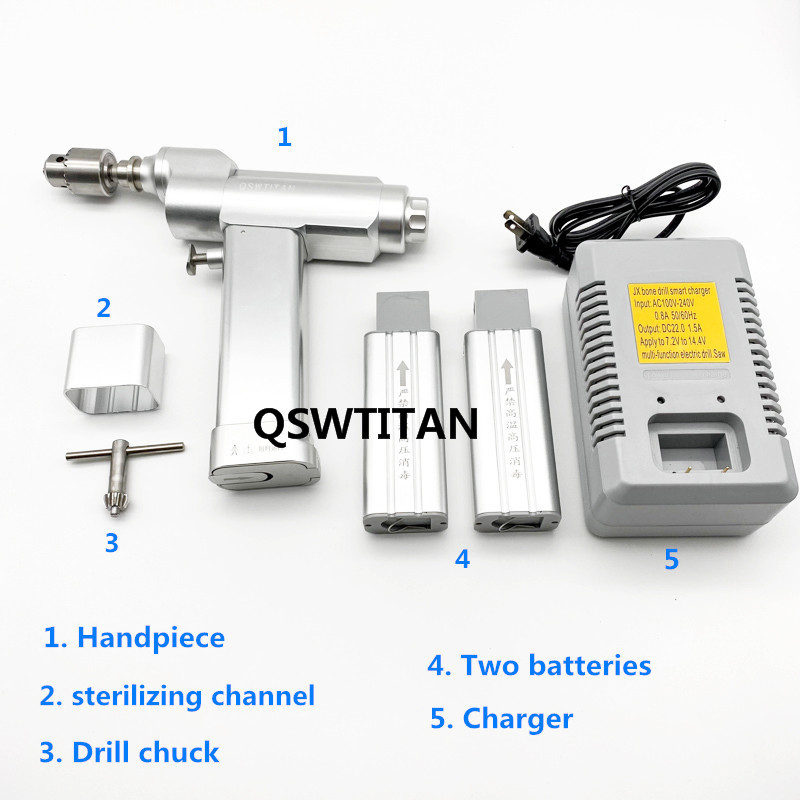

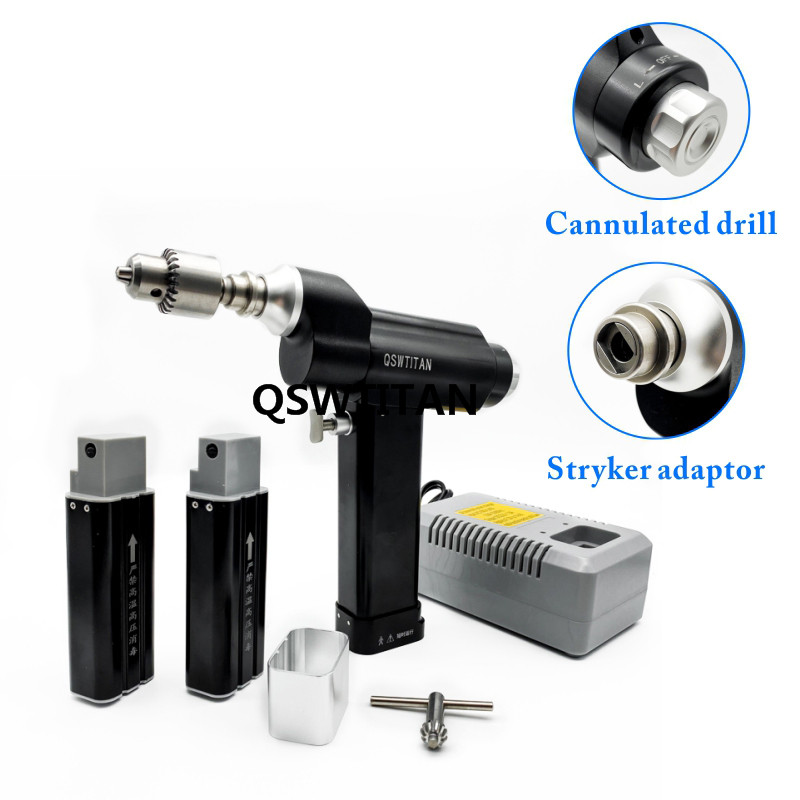

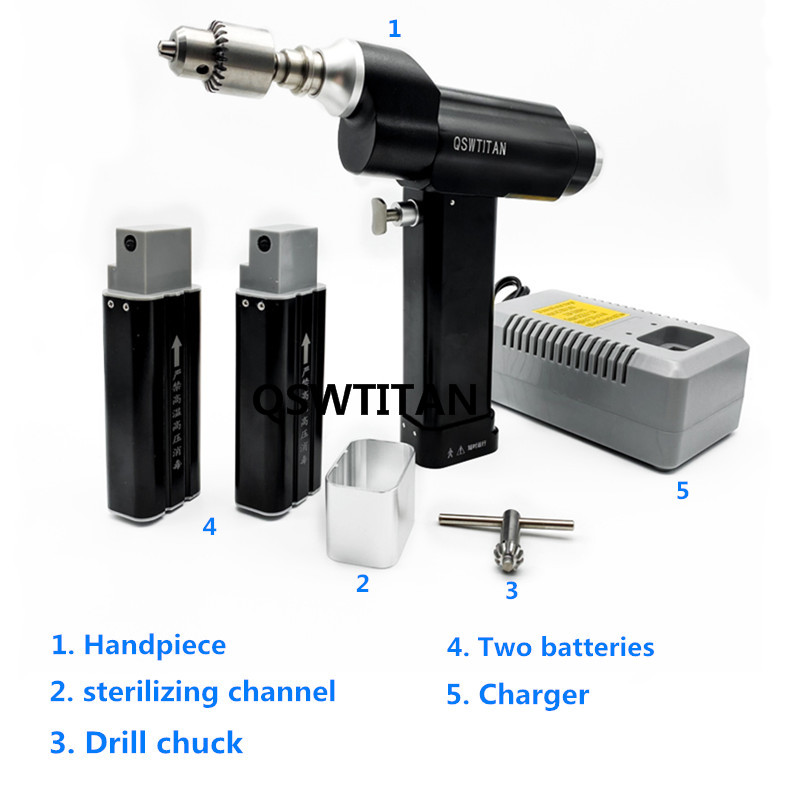

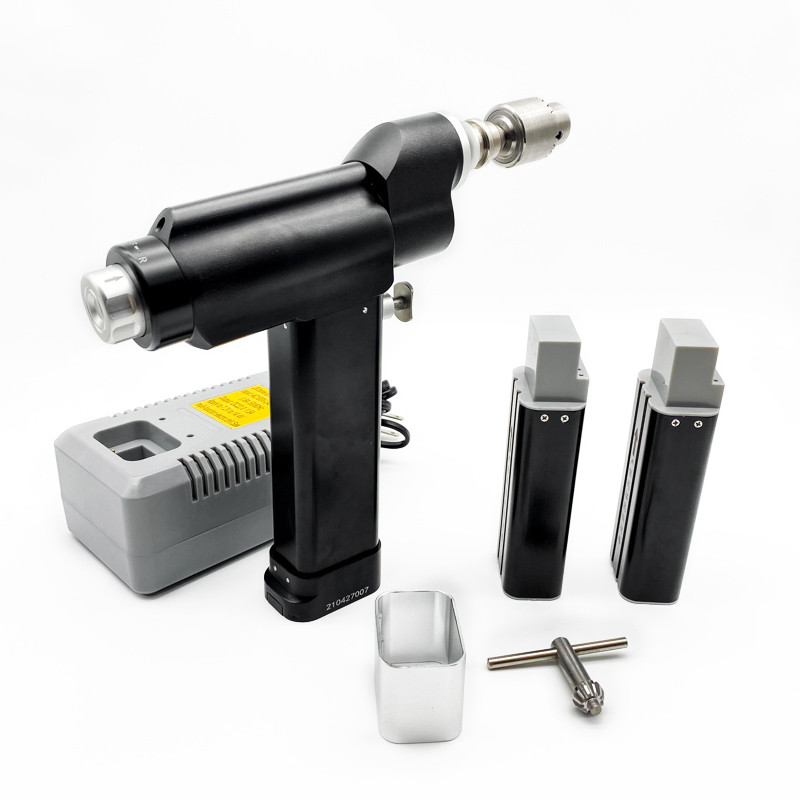

Standard Configuration
1x Cannulated Drill Handpiece
1x Sterilizing Channel
1x Drill Chuck
2x Batteries
1x Charger

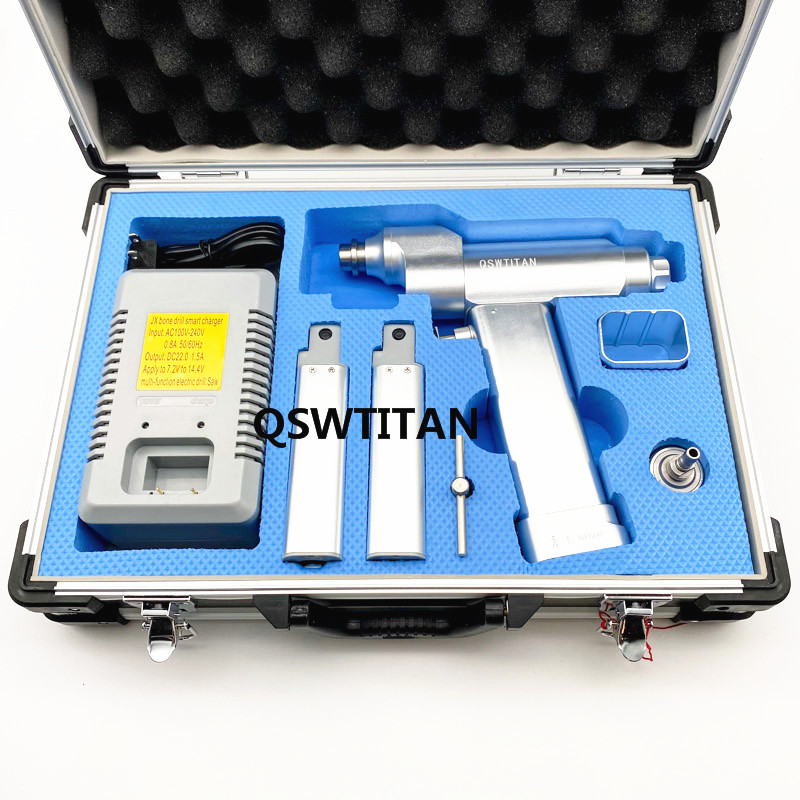

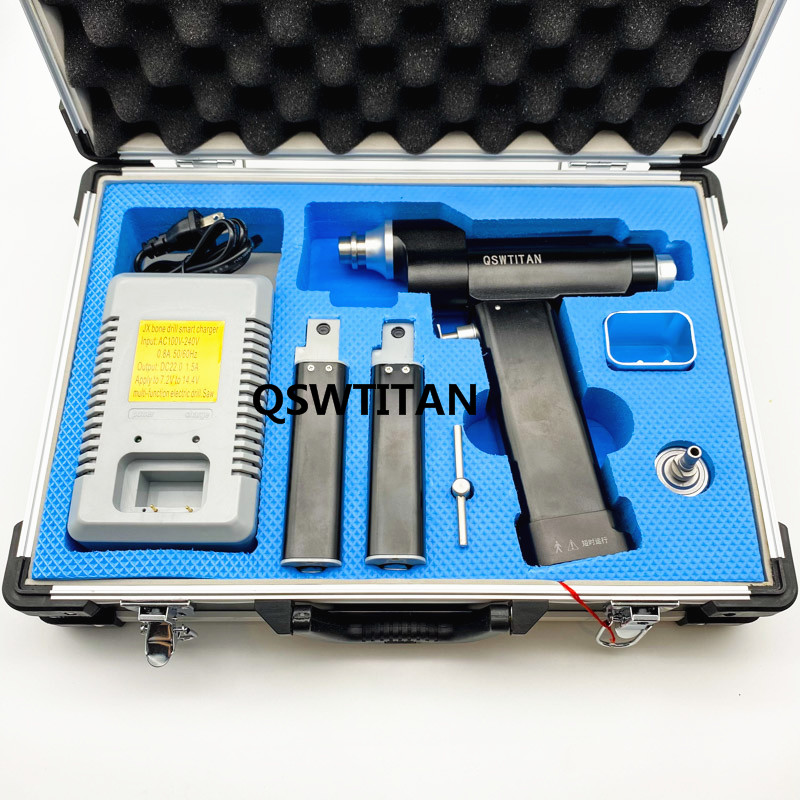

1x Aluminum Case

Key Features

  • Fully autoclavable and sterilizable up to 135ºC.
  • Discretionary speed control to adapt to various surgical scenarios.
  • Delivers strong power with low noise and minimal vibration.
  • Ergonomically designed for comfortable and convenient operation.
  • Concentric drilling precision with less than 0.05mm variance ensures stable performance.
  • Supports a variety of drilling demands with dedicated drill bits.

Technical Parameters

  • Output Power: 130W
  • Speed: 0-800 r.p.m
  • Drill Range: 0.8-8mm
  • Noise Level: ≤ 65 dB
  • Sterilization Temp: Up to 135ºC
  • Operation Voltage: 14.4V
  • Temp. Rise (Handpiece): ≤ 25ºC
  • Charger Input: AC 220V/50Hz or 110V/60Hz
  • Charging Time: 2.5 - 3 Hours
Product Gallery
Usage Scenarios
Packaging & Shipping
Frequently Asked Questions
What is the maximum temperature this cannulated drill can withstand during sterilization?
The handpiece and sterilizing channel can be fully autoclaved and sterilized at temperatures up to 135ºC, ensuring complete compliance with standard operating room hygiene protocols.
How is the drilling speed controlled during trauma surgery?
The drill features a discretionary speed control trigger, allowing surgeons to adjust the speed smoothly from 0 to 800 r.p.m. to meet the precise demands of various bone and joint procedures.
What is the concentric drilling precision of this instrument?
This cannulated drill features a concentricity difference of less than 0.05mm, which ensures exceptionally precise, stable, and wobble-free drilling performance.
What components are included in the standard configuration package?
The standard kit includes 1 Cannulated Drill Handpiece, 1 Sterilizing Channel, 1 Drill Chuck, 2 high-capacity Batteries, 1 Charger, and a heavy-duty protective Aluminum Carrying Case.
How long does it take to charge the batteries, and how many are provided?
Each package comes with 2 rechargeable batteries to support continuous surgical operations. The charging time for a single battery is approximately 2.5 to 3 hours.
Is this surgical drill suitable for veterinary applications?
Yes, the drill is highly versatile and designed for both human orthopedic trauma/joint surgeries as well as veterinary orthopedic surgical procedures.
