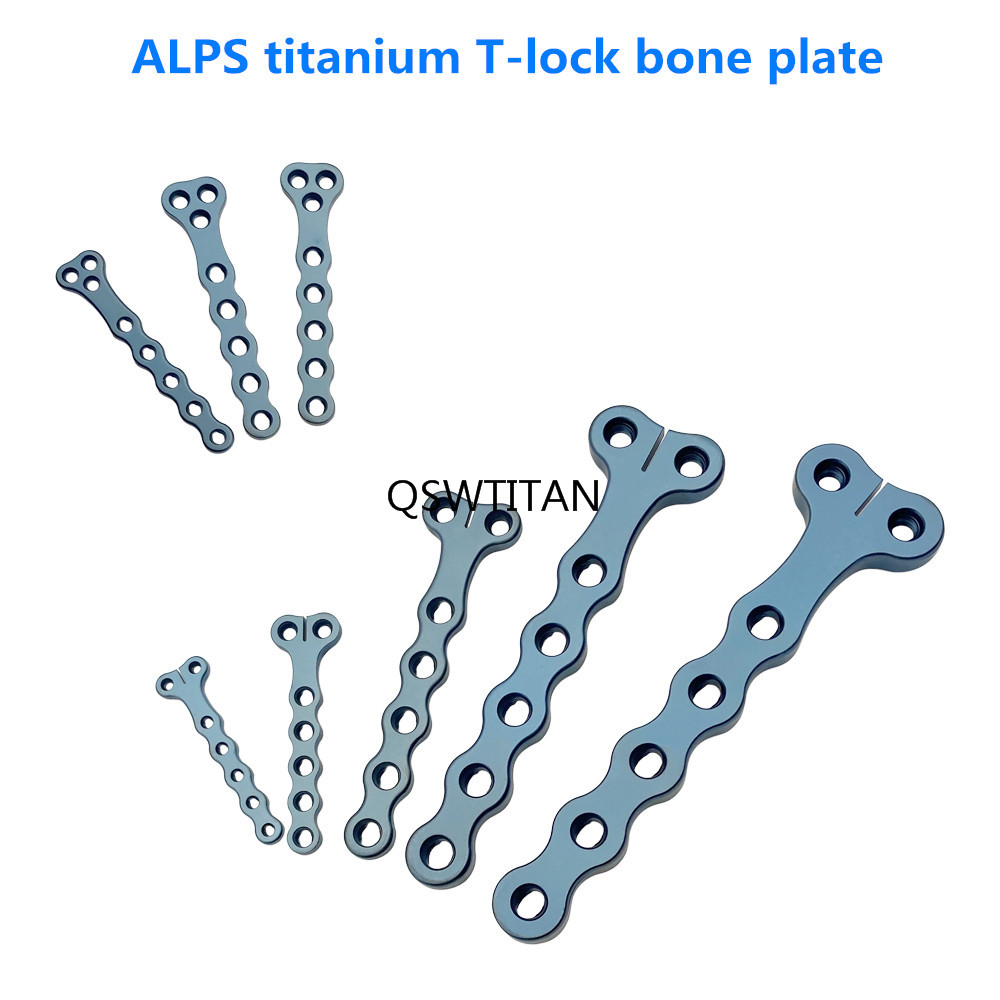

| Product: | T Locking Plate |
| Material: | Titanium Alloy material |

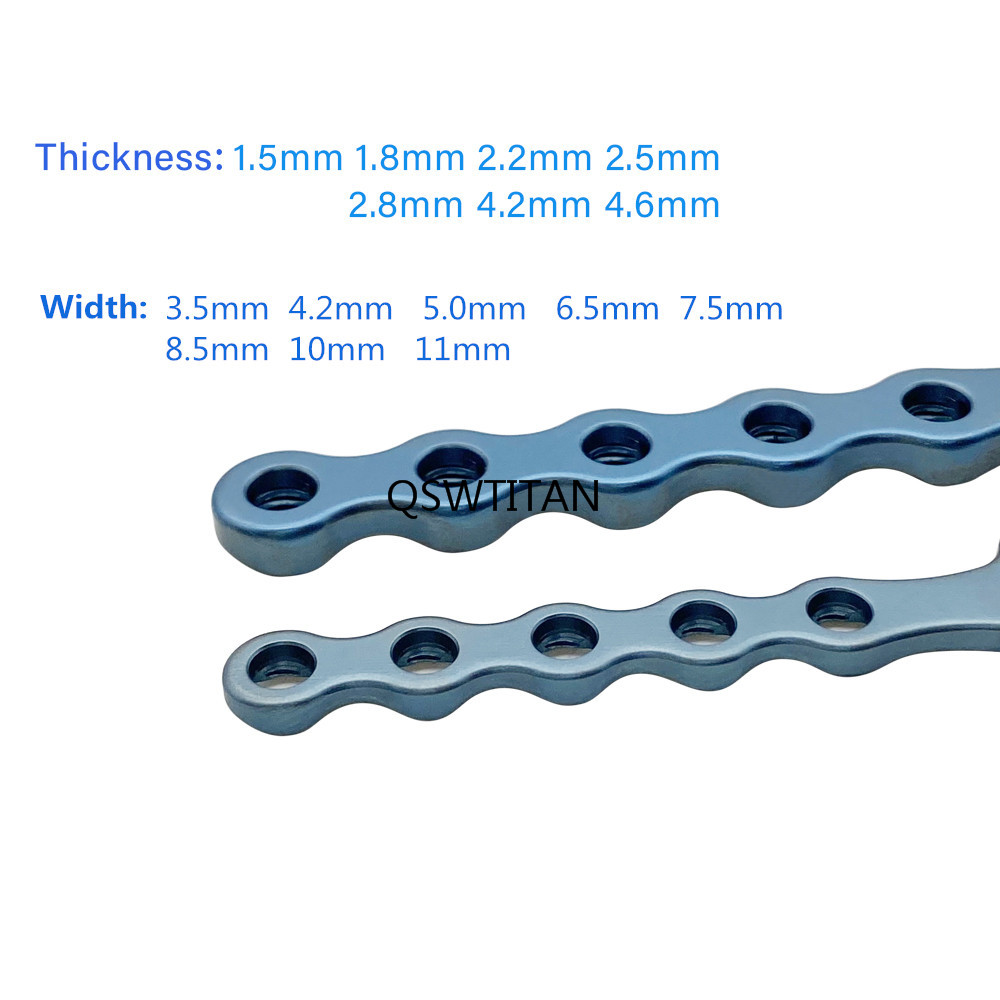

| Thickness: | 1.5mm 1.8mm 2.2mm 2.5mm 2.8mm 4.2mm 4.6mm |
| Width: | 3.5mm 4.2mm 5.0mm 6.5mm 7.5mm 8.5mm 10mm 11mm |
| Applications: | orthopedic surgery instruments |
| Packing List: | 1pcs (11 models available for selection) |
| MOQ: | 1pcs |

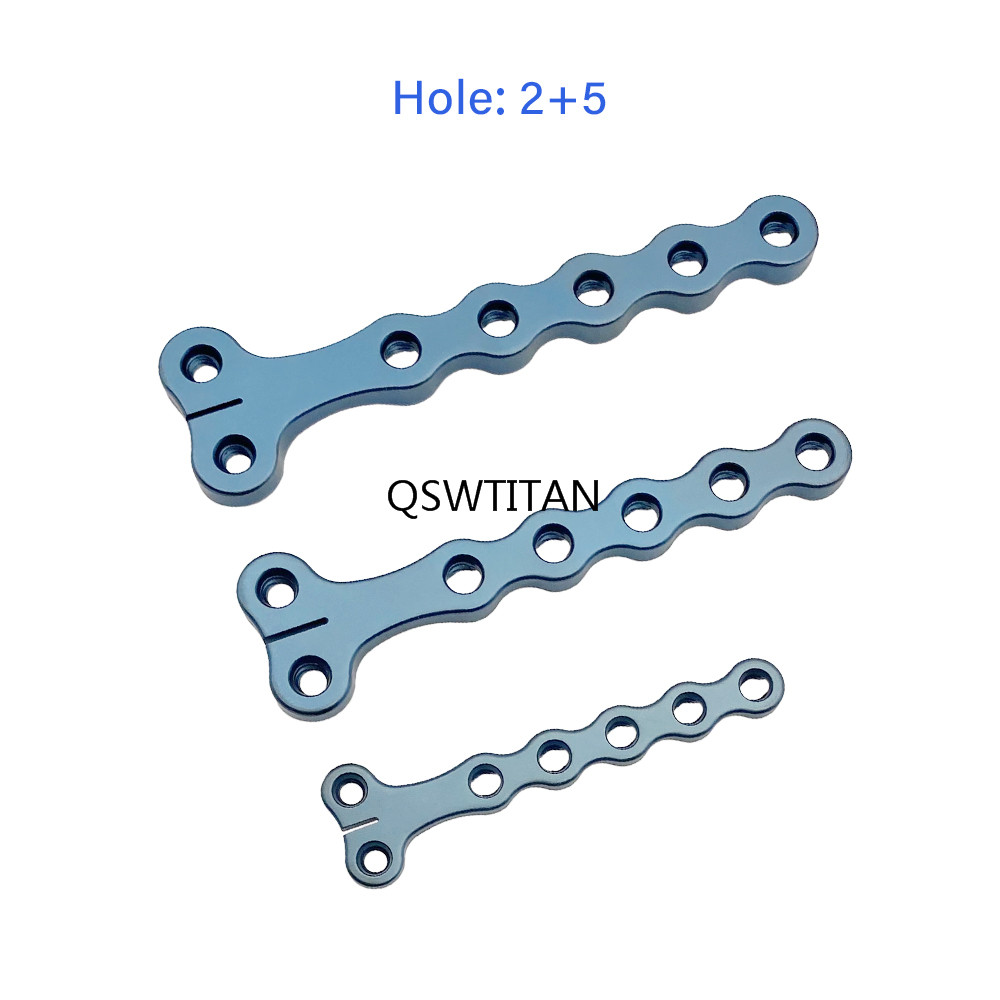

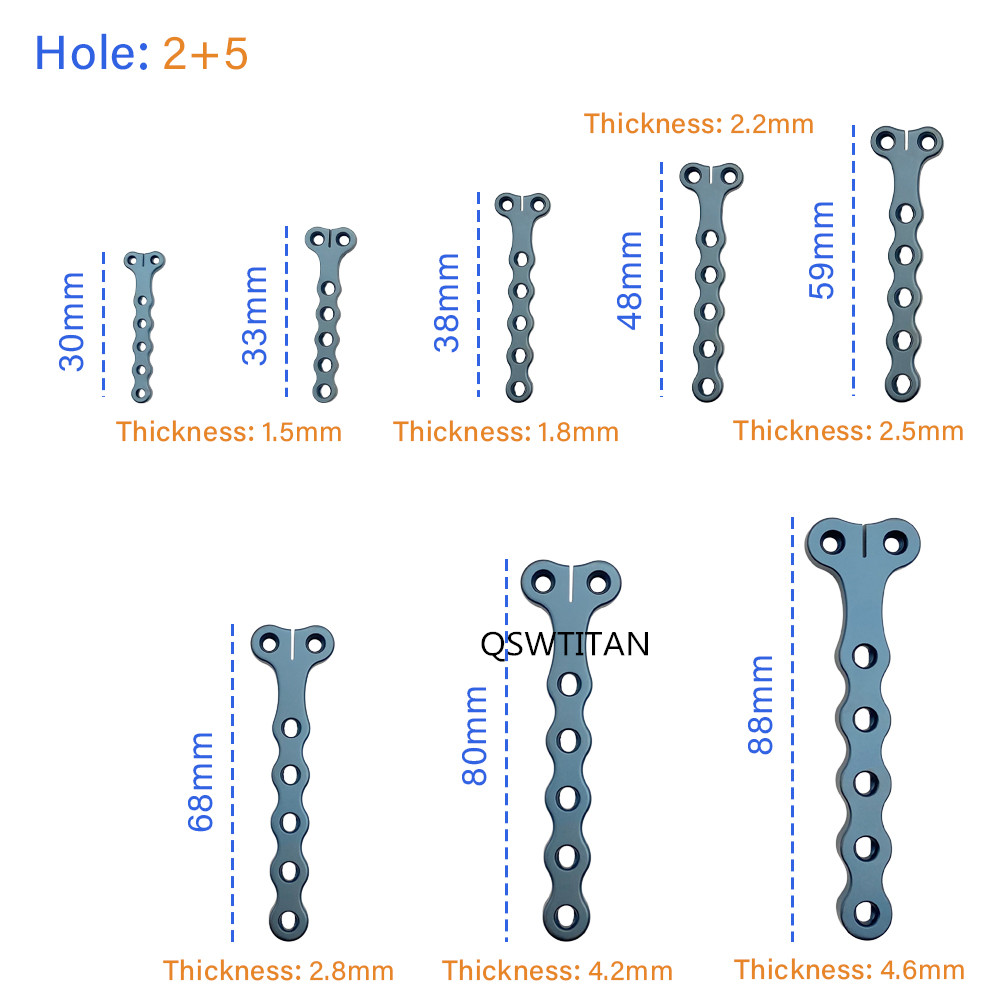

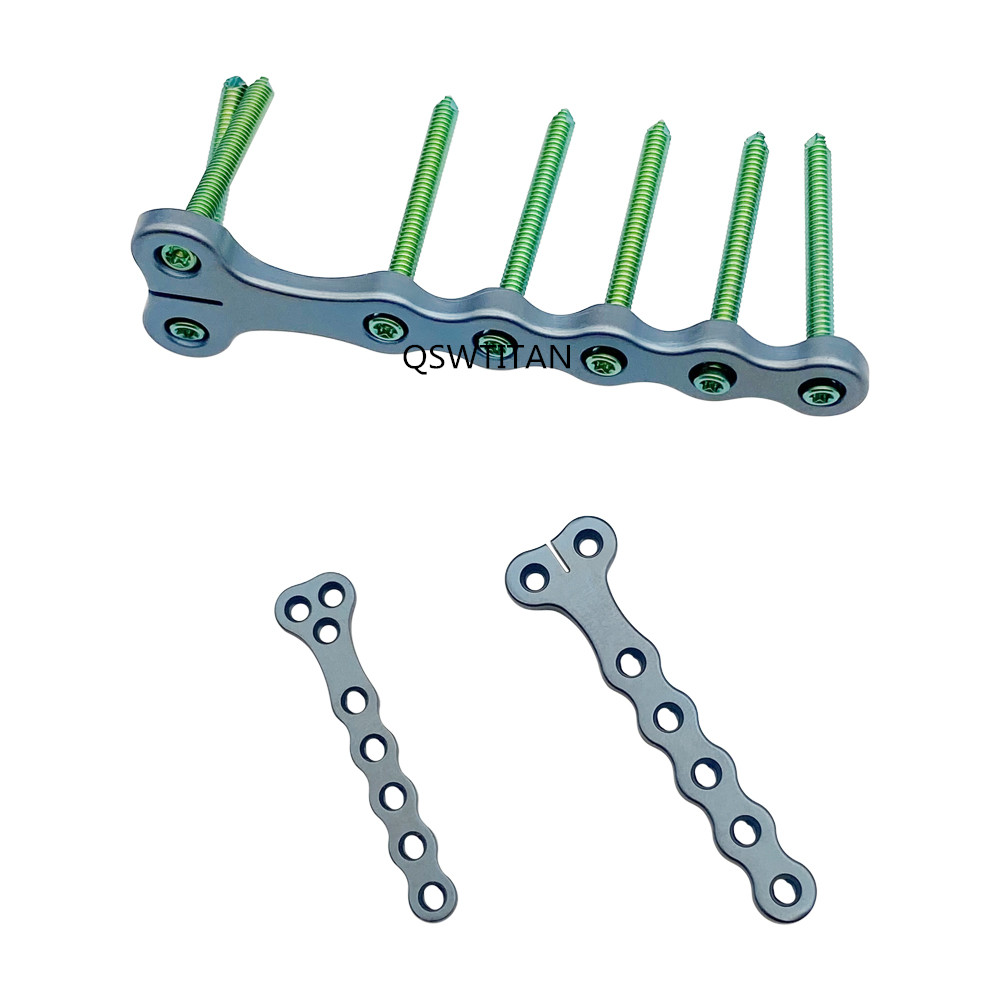

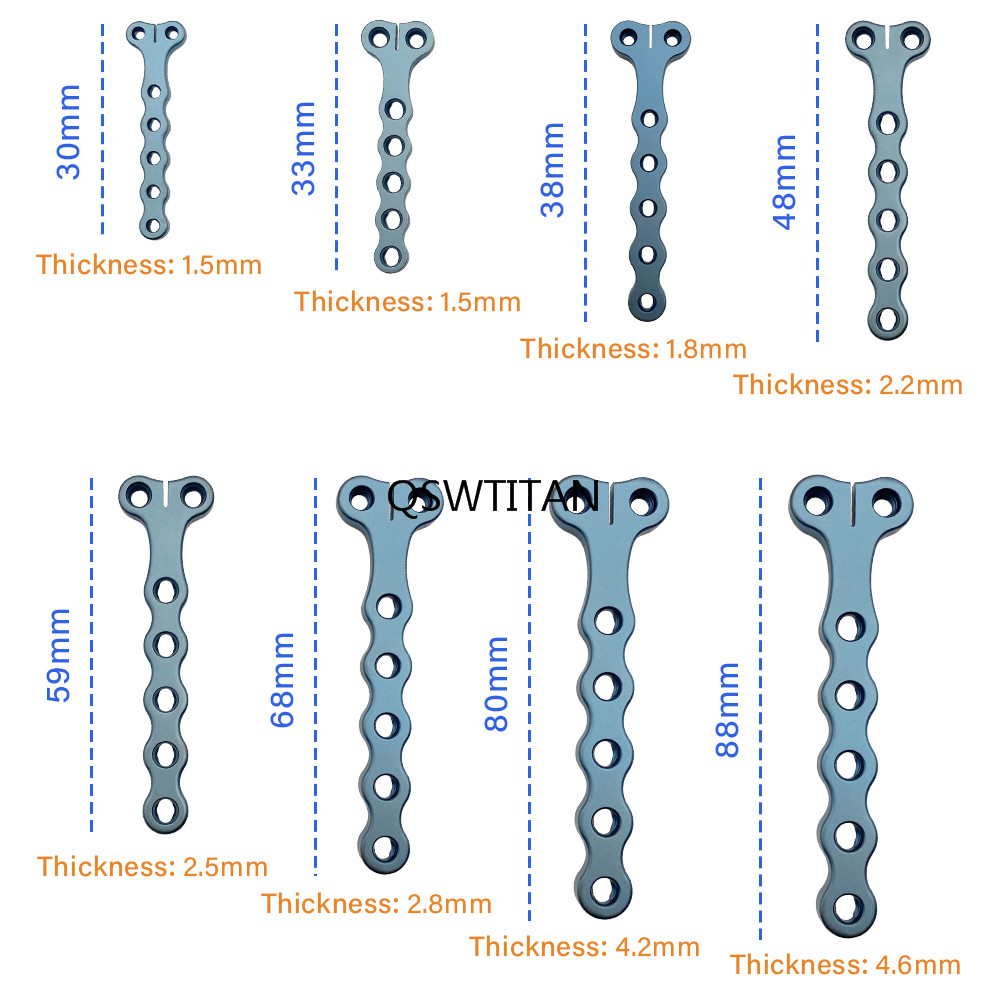

| Width | Sku code | Hole | Thickness | Length | Can Fit screw |

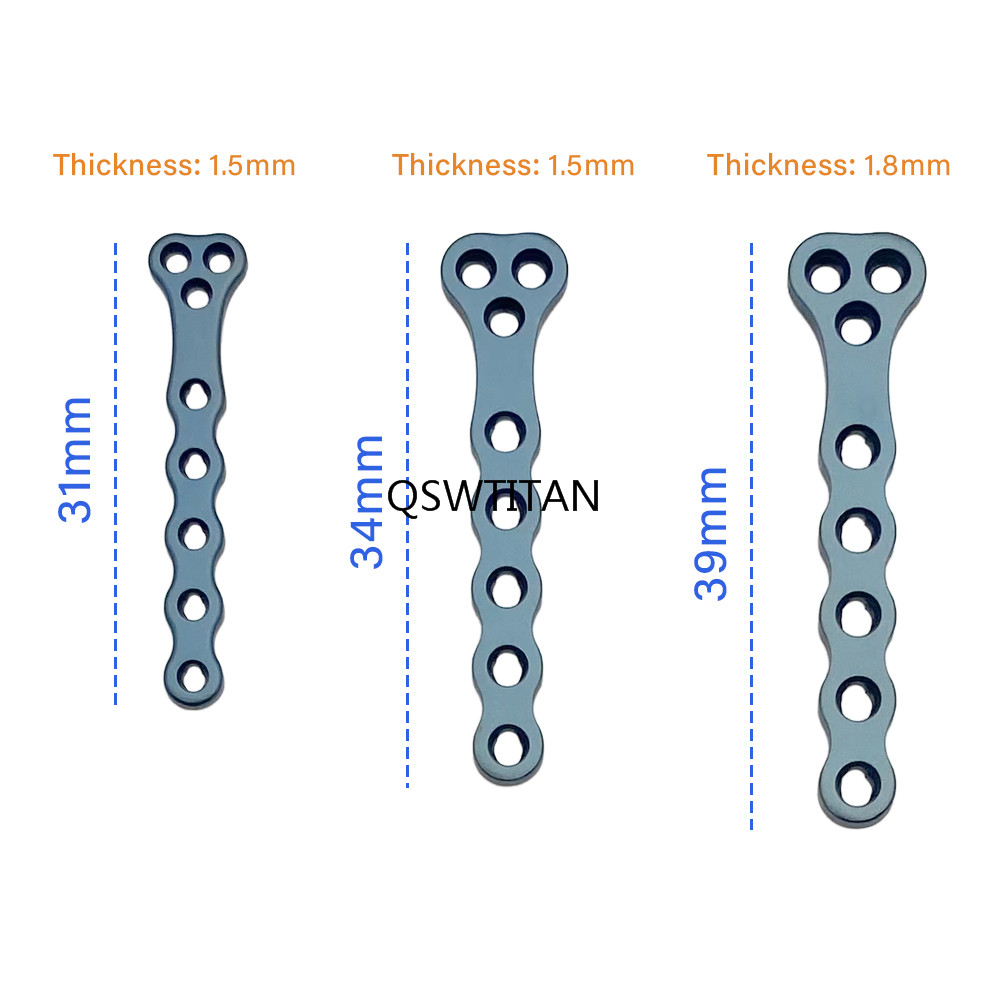

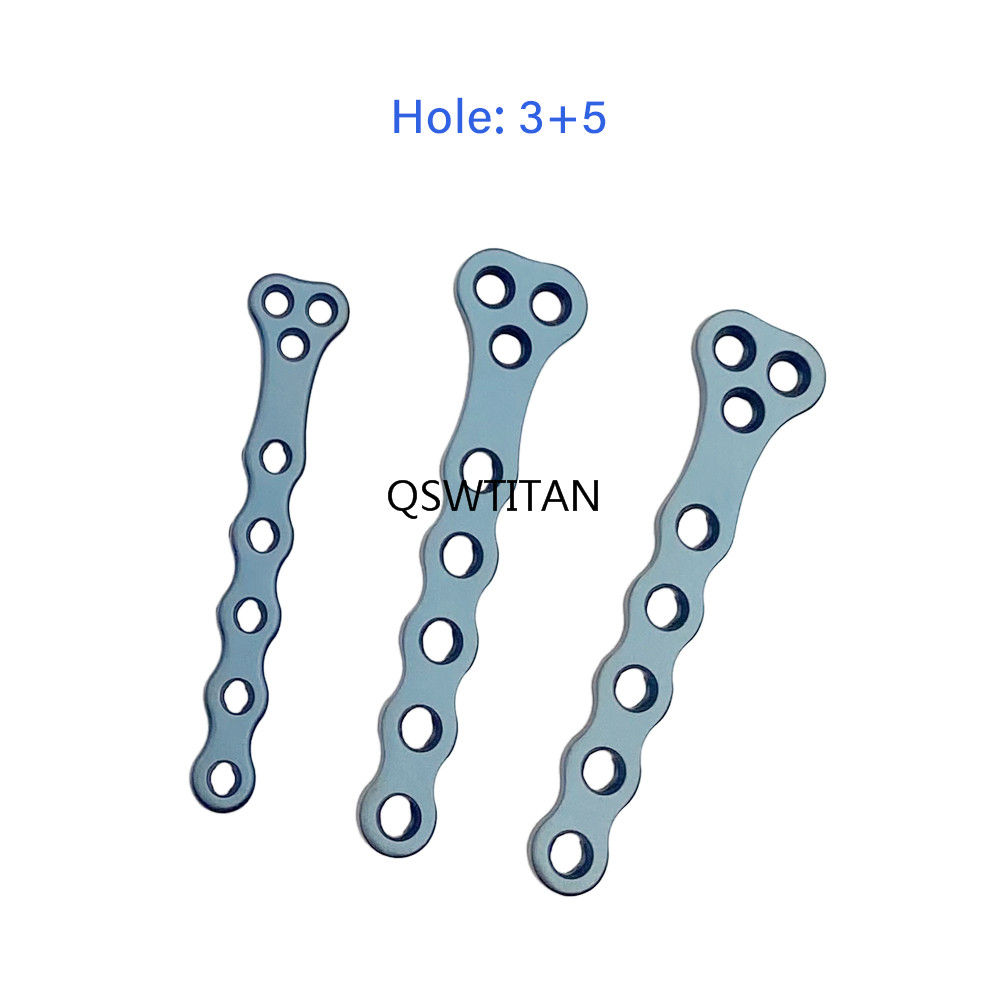

| 3.5mm | ALPS3.5 T2 / T3 | 2+5 / 3+5 | 1.5mm | 30mm / 31mm | Cortical screw C1.1 Locking screw B1.6 |
| 4.2mm | ALPS4.2 T2 / T3 | 2+5 / 3+5 | 1.5mm | 33mm / 34mm | |
| 5.0mm | ALPS5.0 T2 / T3 | 2+5 / 3+5 | 1.8mm | 38mm / 39mm | Cortical screw C1.5 C2.0 Locking screw B2.4 |
| 6.5mm | ALPS6.5 T2 | 2+5 | 2.2mm | 48mm | |
| 7.5mm | ALPS7.5 T2 | 2+5 | 2.5mm | 59mm | Cortical screw C2.4 Locking screw B3.2 |
| 8.5mm | ALPS8.5 T2 | 2+5 | 2.8mm | 68mm | |
| 10.0mm | ALPS10.0 T2 | 2+5 | 4.2mm | 78mm | Cortical screw C2.7 Locking screw B4.0 |
| 11.0mm | ALPS11.0 T2 | 2+5 | 4.6mm | 88mm |

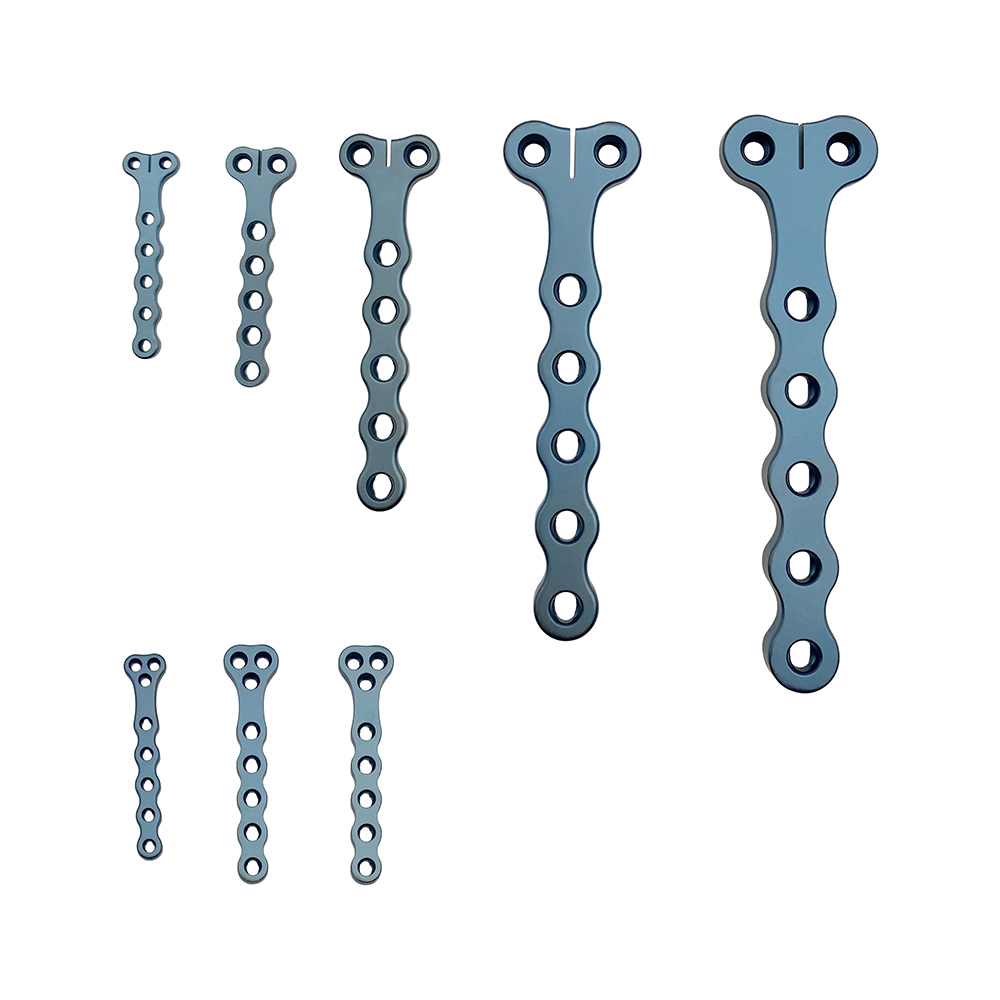

| Model Selection Reference | |
| ALPS3.5 T2 | ALPS6.5 T2 |
| ALPS3.5 T3 | ALPS7.5 T2 |
| ALPS4.2 T2 | ALPS8.5 T2 |
| ALPS4.2 T3 | ALPS10.0T2 |
| ALPS5.0 T2 | ALPS11.0T2 |
| ALPS5.0 T3 | |
