Home > Orthopedic Trauma Implant > Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material

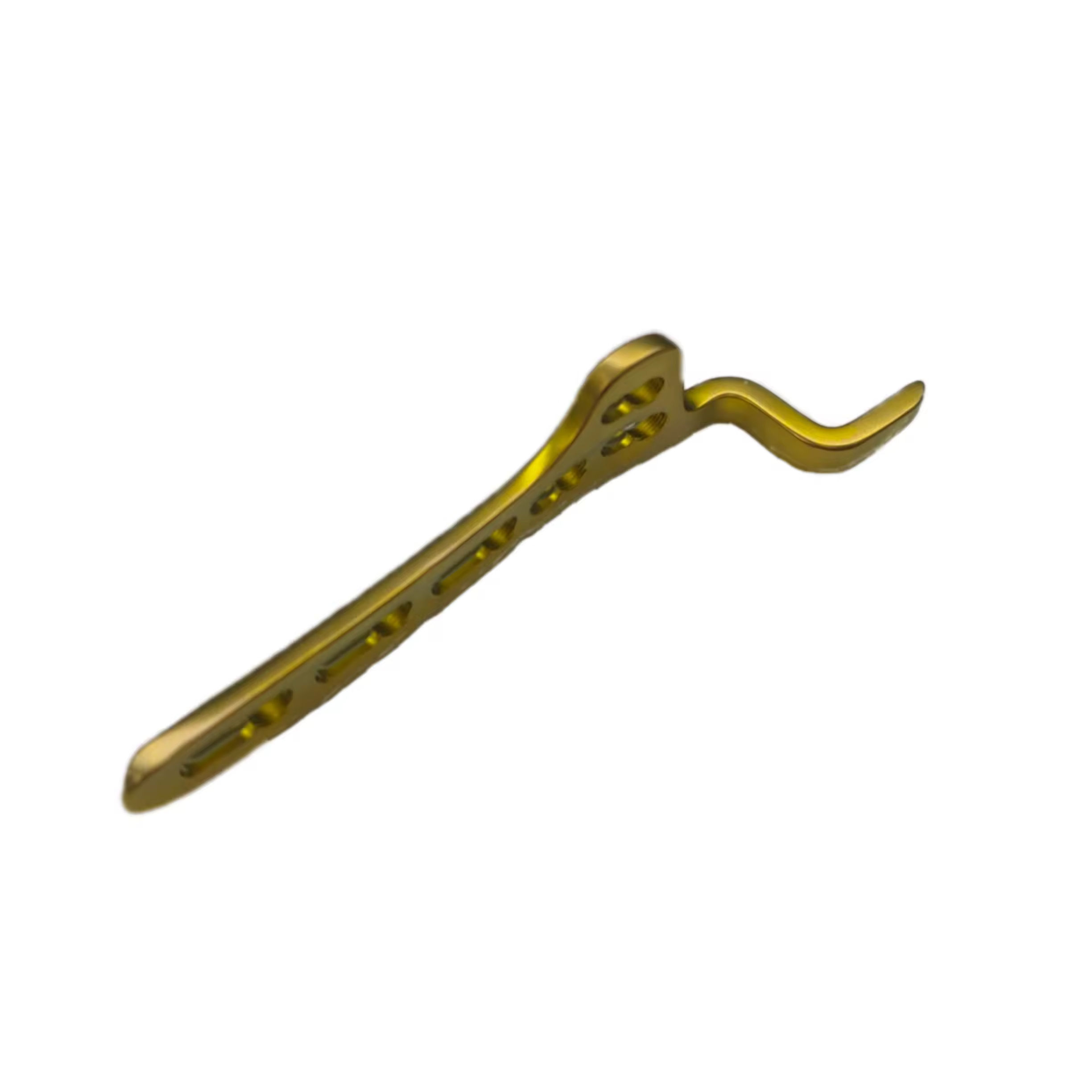

Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
1 / 5
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material
Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material

Orthopedic Trauma Implantation Titanium Distal Volar Radial Locking Plate Drill Guide Variable Angle Interventional Material

Send Inquiry

Product Description

Locking Plate Component 1
Locking Plate Component 2
Locking Plate: Suitable for internal fixation of fractures of limbs, pelvis, clavicle and hands and feet. Optimize the pre-processed plate and design low profile. Can choose the fixed Angle freely according to the fracture situation.

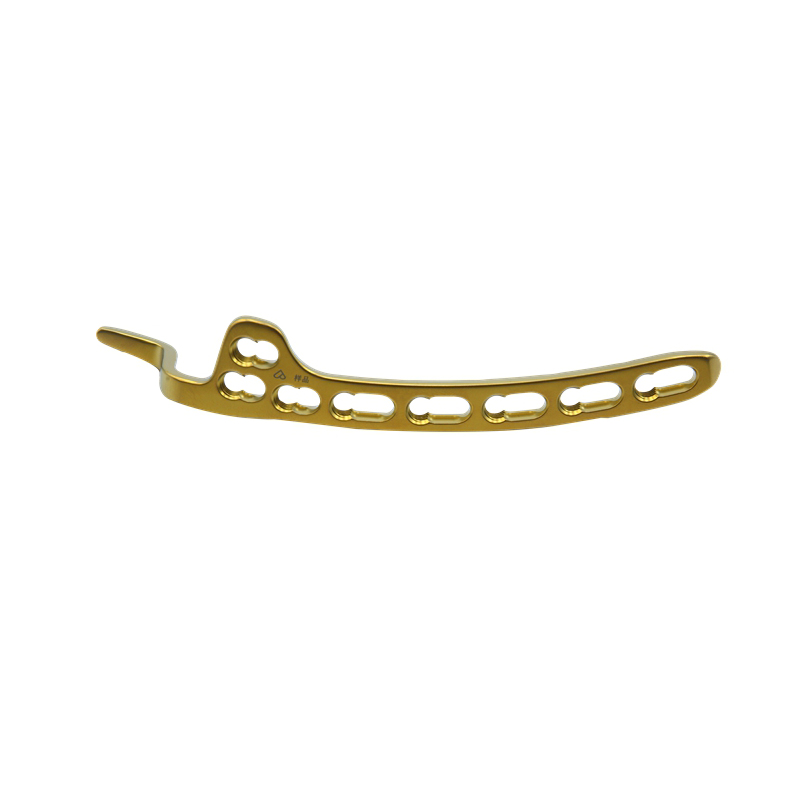

Locking Plate System Overview

Product Specifications

Product Name Model Specification Material Code
Clavicular Hook Locking Plate JPSD09 4--8 hole Titanium Alloy 10300204
Product Name Model Specification Material Code 5--20 Pcs 20+ Pcs
Reconstruction Locking Plate ZXSD02 6 hole Titanium Alloy 10010006 57.95 54.90
Narrow Dynamic Locking Plate II ZXSD05 6--14 hole Titanium Alloy 10040406 54.15 51.30
Humeral compression locking plate JPSD13 4--16 hole Titanium Alloy 10350203 57.95 54.90
Clavicular Hook Locking Plate JPSD09 4--8 hole Titanium Alloy 10300204 56.05 53.10
Clavicular Hook Locking Plate II JPSD90 4--10 hole Titanium Alloy 10300204 57.00 54.00
Reconstruction Clavicular Locking Plate IV JPSD94 7-9 hole Titanium Alloy 11150207 76.00 72.00
Proximal humeral locking plate JPSD33 3--14 hole Titanium Alloy 10540203 58.90 55.80
Oblique T- Locking Plate JPSD07 3 hole Titanium Alloy 10280203 58.90 55.80
Distal lateral humeral locking plate JPSD13 3--11 hole Titanium Alloy 10280203 68.50 64.80
Proximal ulnar locking plate JPSD15 3--12 hole Titanium Alloy 10360203 71.25 67.50
Distal radial locking plate II JPSD78 3--8 hole Titanium Alloy 10990203 40.85 38.70

Key Design Characteristics

Countersunk head of screw design
1 Countersunk head of screw:
Titanium alloy material. The possibility of the screw head plate protrusion is reduced, and the fixing direction is more convenient to adjust.
2.4mm locking screw detail
2 2.4mm locking screw:
High Security. Offering reliable insertion, the round, thin, blunt edge design allows for minimally invasive muscle penetration, adhesion to bone surfaces, and reduced tissue irritation.
Phalanx variable locking plate 1.3/1.5mm
3 1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material):
Easy to operate. Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx.

Details Images

First metatarsophalangeal joint fusion plate
2.4/ 2.7mm First metatarsophalangeal joint fusion variable locking plate (titanium alloy material):
3 different dorsiflexion angles, 0/ 5/ 10 respectively, are suitable for different joints. Reliable. Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Medial-lateral distal humeral locking plate
Medial-lateral distal humeral locking plate:
Plates are anatomically precontoured. With countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Phalanx variable locking plate
1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material):
Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx. Plates are anatomically precontoured of phalanx and have left and right types.
Distal radius locking plate
Distal radius locking plate:
The volar / dorsal distal radius combination provides a rich imagination space for doctors. Precontoured design adheres to bone surface to reduce tissue irritation. Round thin blunt edge design for minimally invasive insertion through the muscle.
Calcaneus variable locking plate
2.7mm Calcaneus variable locking plate (titanium alloy material):
Anatomically precontoured plates adhere to calcaneal protrusion, posterior articular talus and calcaneal tubercle. Countersinkable head design of screw reduces the possibility of screw head protruding plate surface.

Orthopedic Medical Devices

Orthopedic Medical Implants Grid 1
Orthopedic Medical Implants Grid 2

Production Showcase

Production Environment 1
Production Environment 2
Production Environment 3

Frequently Asked Questions

Q1: Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, CE approvals?
Yes, our products are manufactured under ISO9001, ISO 13485 and CE standards to ensure high quality and absolute surgical safety.
Q3: What is the minimum order that we can place? Do you provide free samples?
We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Q4: Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q5: Do you have stock for listed products, or they are newly produced?
Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information.
Q6: What are your terms and methods of payment?
Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
