| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|

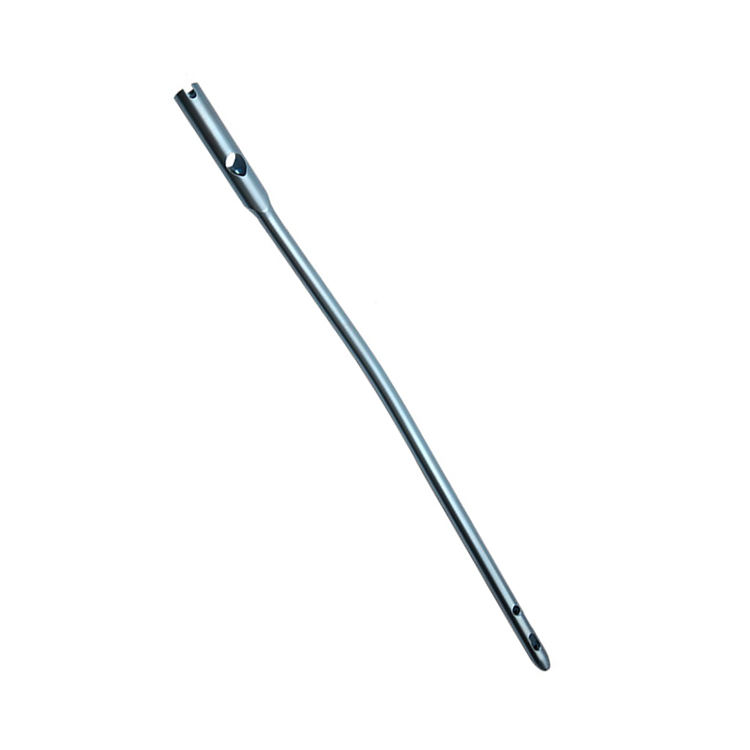

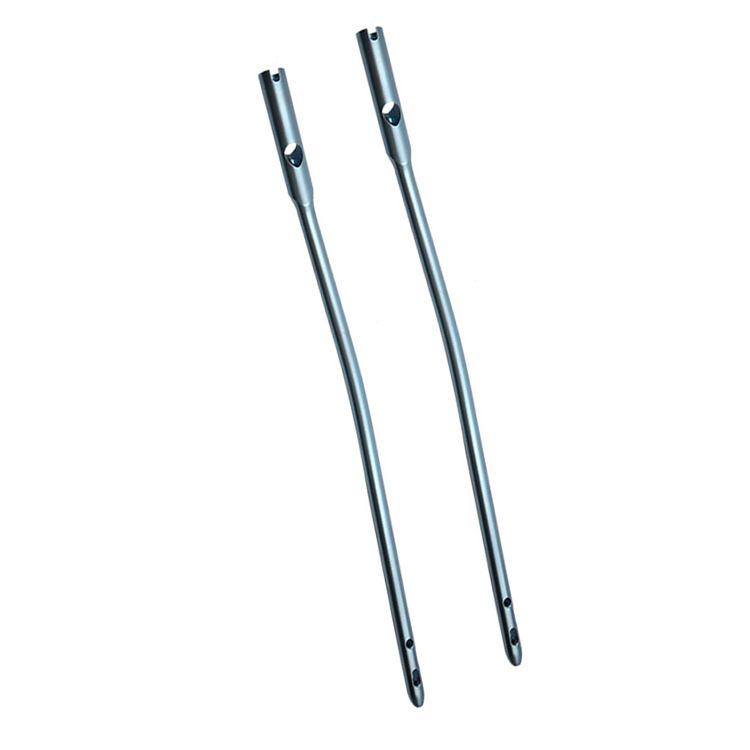

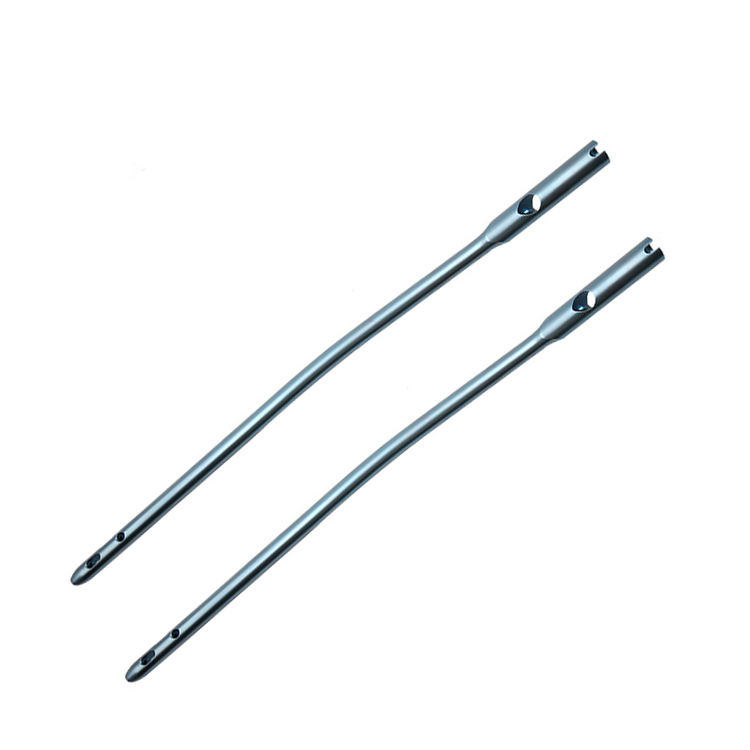

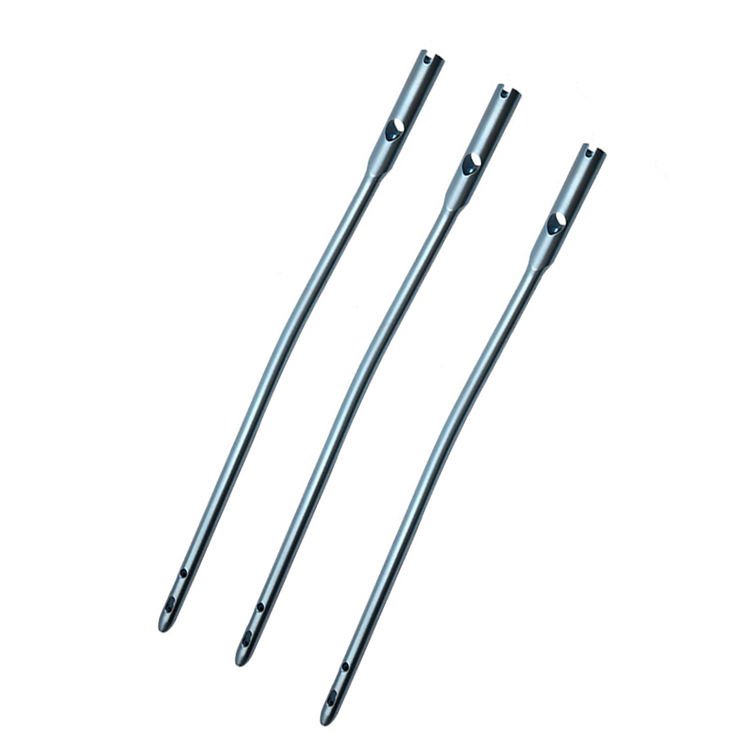

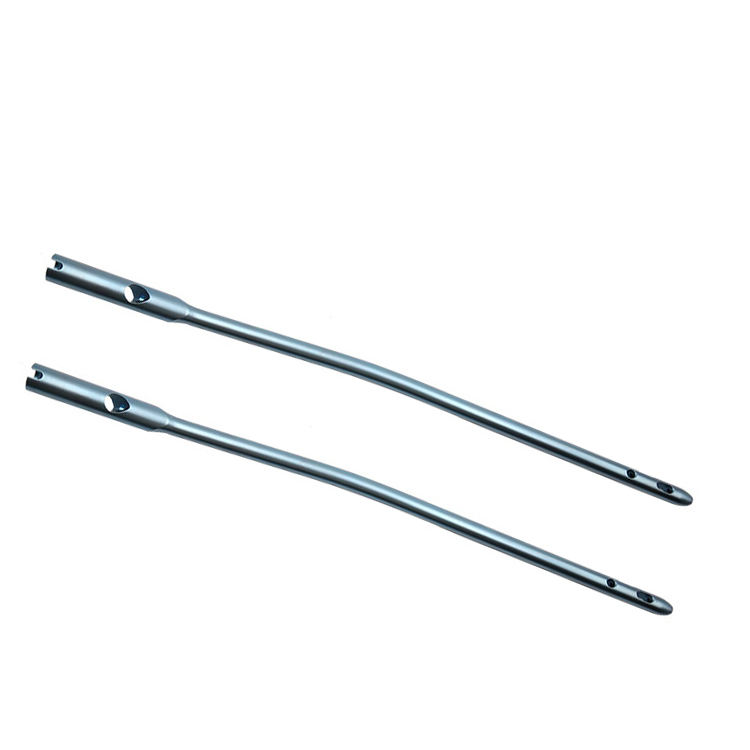

| Proximal Femoral Nail Antirotation Intramedullary Nail (non sterilization) | SGM-IIK | Titanium Alloy | 11.0×400×130°Right | 15661400 |

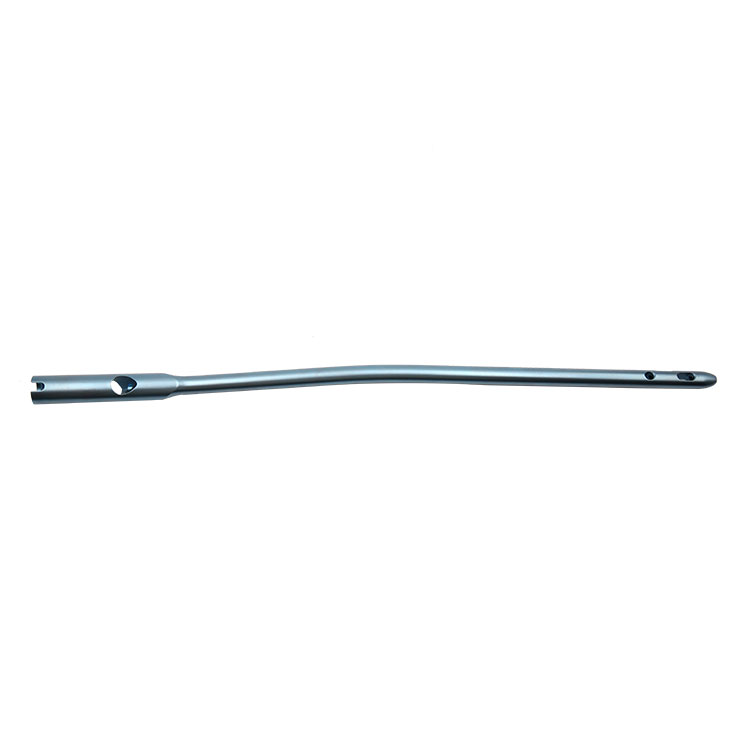

Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is consistent with the anatomy of the FEMORAL medullary cavity.
Further improves the fixation strength in osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short nail: diameter of 8.0 / 9.5mm, length of 160mm.
Long nail: diameter of 7.0 / 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right types, made of high-quality titanium alloy. The diameter is suitable for all applications, featuring simple operation and minimally invasive implantation.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Special design of compression holes. helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.
Yes, our orthopedic medical implants are manufactured under rigid quality assurance systems, complying with ISO 9001, ISO 13485, and CE international standards to guarantee high clinical safety.
We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
They are manufactured using biocompatible Titanium Alloy, making them easy to insert and extract. The structural optimization reduces the risk of outer wall impact and main nail inward movement, allowing for highly stable, minimally invasive implantation.
