Conmed Stryker Medical Orthopedic Drilling Electric Orthopedic Drill for Orthopaedic Power Tools

Send Inquiry

Product Description

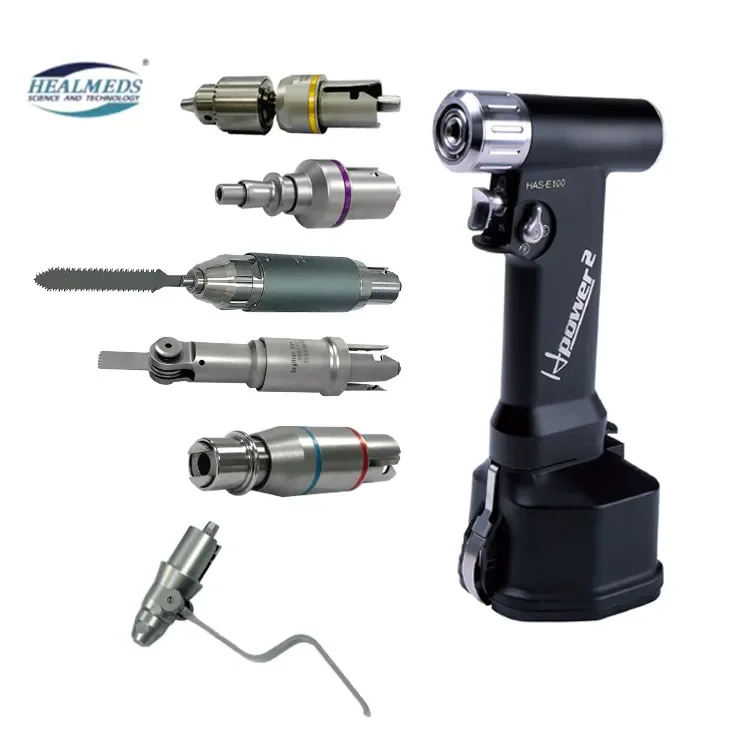

E100 Multifunction Drill

Mini multi-function bone drill machine designed for precision and durability in medical applications.

Key Features

Speed Range (Key Chuck Attachment): 0-1200rpm
Torque (Key Chuck Attachment): 3.5N-m
Speed Range (Reaming Attachment): 0-400rpm
Torque (Reaming Attachment): 10N-m
Durable Construction: All copper thick wall chuck, high concentricity, and stable speed.

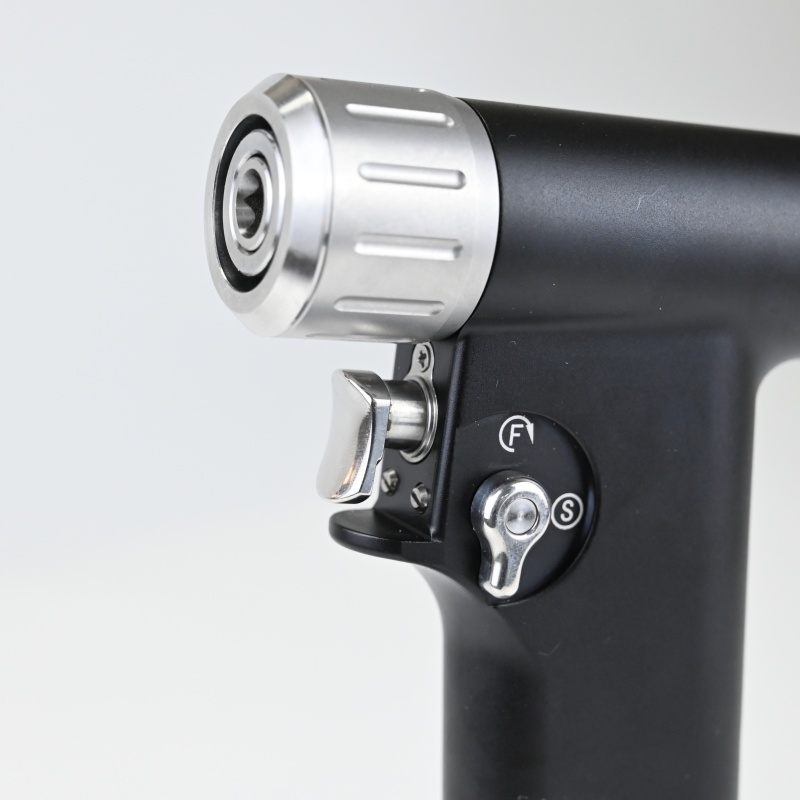

Ergonomic Design: Tail power switch design for smooth operation.
Performance: Micro motor with full copper core wire for low noise, high power, and high stability.
Usability: Frosted texture surface for slip prevention and comfortable grip.

Product Details

Technical Specification

Item	Value

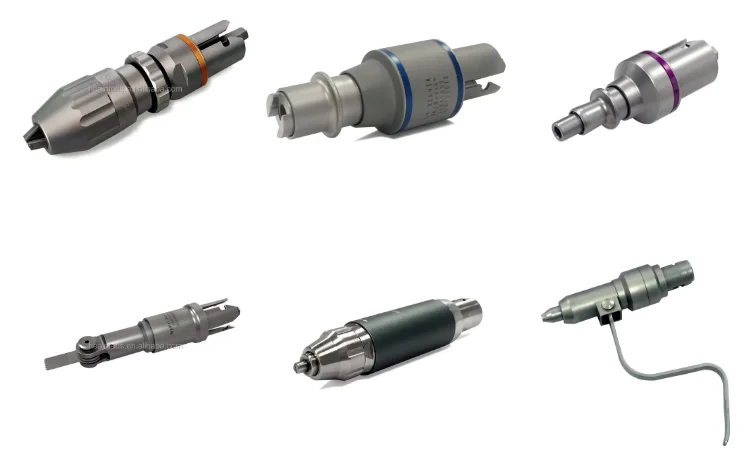

Multi-Function Handpiece	Brushless DC canulated motor (USA)

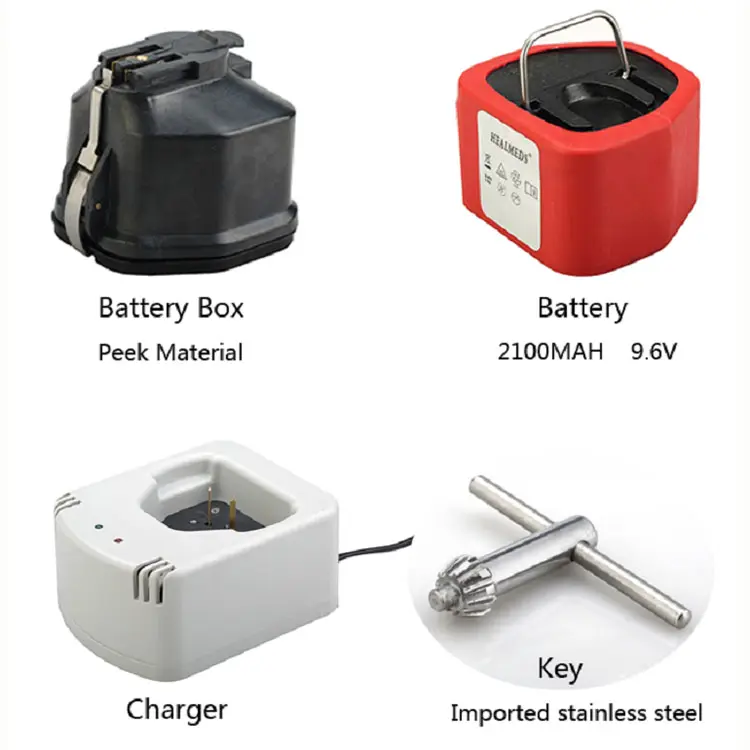

Battery	Ni-MH, 2100MAH, 9.6V
Battery Box	Peek material, sterilizable >3000 times
Transfer Shield	Imported stainless steel 304
Key Chuck	0-1200rpm, 3.5NM
Reaming Attachment	0-400rpm, 10NM
K-wire Attachment	0.7-1.6mm / 1.6-4.0mm

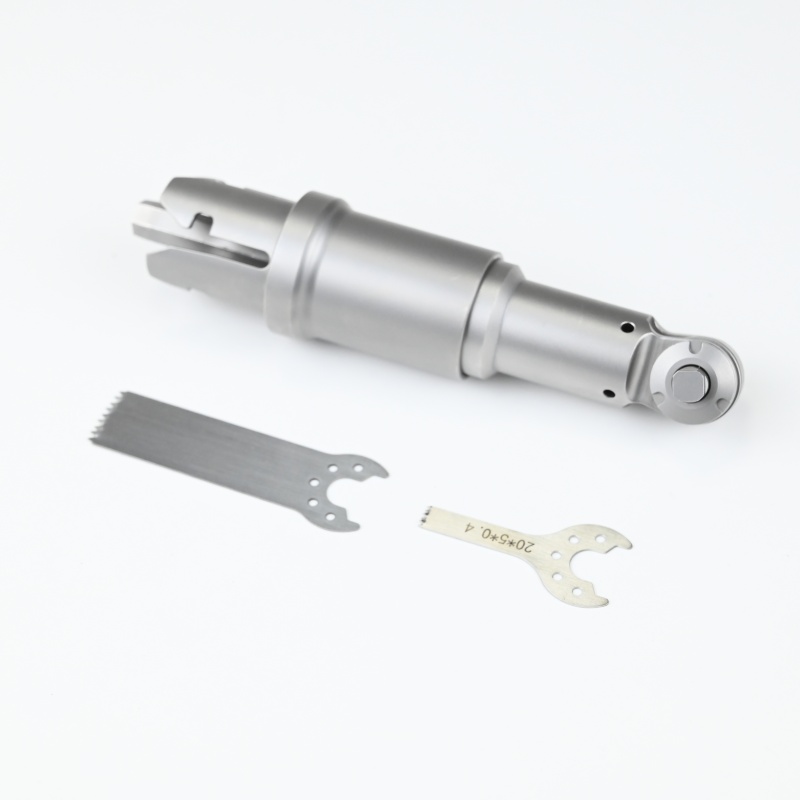

Reciprocating Saw	Frequency: 0-12000cpm
Sterilization box	445275215mm, 4.6Kg

Our Advantages

Frequently Asked Questions

1. Is the E100 handpiece autoclavable?

Yes, the battery box is made of PEEK material, capable of withstanding sterilization more than 3000 times.

2. What type of motor does the drill use?

It is equipped with a high-performance brushless DC canulated motor imported from the USA.

3. What is the battery capacity and type?

The drill uses a Ni-MH battery with a 2100MAH high capacity and 9.6V voltage, designed for a longer service life.

4. Is the drill suitable for long-term surgical use?

Yes, the body features a frosted texture for an anti-slip, comfortable grip that reduces fatigue during long operations.

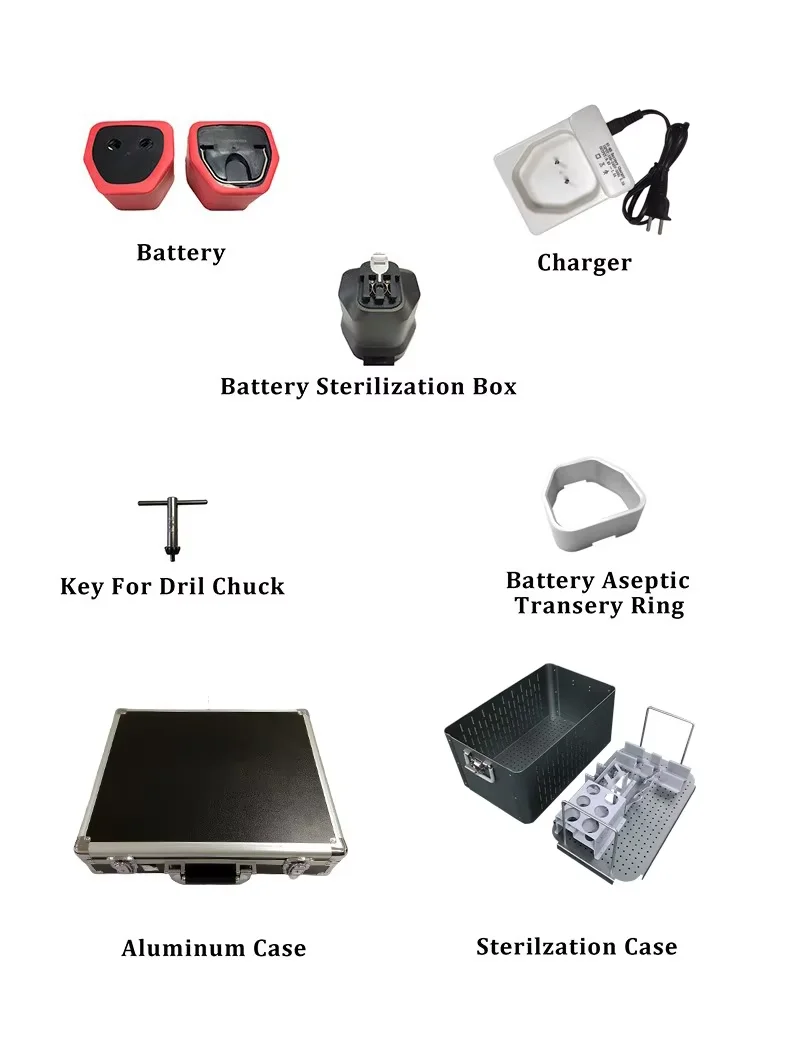

5. Does the set include a sterilization case?

Yes, a sterilization box is included with dimensions 445*275*215mm and a weight of 4.6Kg.
